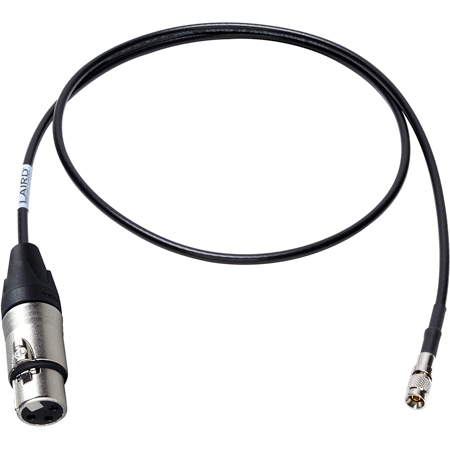

Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 3 Foot

Get larger image of Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 3 Foot


Provide the most reliable connection for your timecode signals with the Laird XLF-DIN-003. The XLF-DIN-003 is compatible with the Timecode Systems UltraSync One and model TCB-51. It features a DIN 1.0/2.3 connector to XLR Female for any devices with a 3-Pin XLR input.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Feeds Time Code Signal Through XLR & DIN Connections
  • Compatible with the UltraSync ONE
  • Neutrik XLR Connector
  • DIN 1.0/2.3 Connector
  • Belden 4K UHD Precision Video Sub-Miniature Coax Cable

Specifications:

    Belden 4855R Specifications:
  • RG Type: Mini 59
  • Conductor AWG: 23 AWG
  • Conductor Stranding: Solid
  • Conductor Diameter: 0.023in
  • Conductor Material: Silvered Copper
  • Insulation Material: Polyethylene (Gas Injected Foam)
  • Insulation Diameter: 0.102in
  • Outer Shield Layer 1 Type: Tape
  • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
  • Outer Shield Layer 2 Type: Braid
  • Outer shield Layer 2 Material/Coverage: Tinned Copper/95%
  • Outer Jacket Material: Polyvinyl Chloride
  • Outer Jacket Diameter: 0.159in
  • Overall Cable Diameter: 0.159in
  • Nom. Conductor DCR: 19.7 Ohm/1000ft
  • Nom. Outer Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km)
  • Nom. Capacitance Cond-to-Shield: 16.3 pF/ft (53.5 pF/m)
  • Nom. Characteristic Impedance: 75 Ohm
  • Nom. Velocity of Prop.: 82%
  • Min. Bend Radius: 1.6in
  • Return Loss:
    • 5 - 1600 MHz 23 dB
    • 1600 - 4500 MHz 21 dB
    • 4500 - 12000 MHz 15 dB

    Neutrik 3-pin XLR Specifications:
  • Contact Resistance: ≤ 3 mΩ
  • Insulation Resistance: > 10 GΩ
  • Lifetime: > 1000 mating cycles

    DIN 1.0/2.3 RF Connector Specifications:
  • Contact Resistance:
    • Center Contact: ≤ 10mΩ
    • Outer Contact: ≤ 3.0mΩ
  • Nom. Impedance: 75Ω
  • Frequency Range: 0 ~12GHz
  • Insulation Resistance: ≥1000MΩ

Warranty:

  • 1 Year

Tags

  • #TCB-51 #UltraSync One Cable
Download the XLF-DIN Series Datasheet
Download the XLM-DIN Series Datasheet


  XLF-DIN-003
Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 3 Foot
Select Lengths:
Weight: 0.1948 lbs.
Price:
$32.95
  XLF-DIN-006
Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 6 Foot
Weight: 0.2458 lbs.
Price:
$37.95
  XLF-DIN-010
Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 10 Foot
Weight: 0.3138 lbs.
Price:
$44.49
  XLF-DIN-015
Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 15 Foot
Weight: 0.3988 lbs.
Price:
$52.49
  XLF-DIN-025
Laird DIN 1.0/2.3 to XLR-F Time Code Cable - 25 Foot
Weight: 0.5688 lbs.
Price:
$68.49
  XLM-DIN-003
Laird DIN 1.0/2.3 to XLR-M Time Code Cable - 3 Foot
Select Lengths:
Weight: 0.1948 lbs.
Price:
$32.49
  XLM-DIN-006
Laird DIN 1.0/2.3 to XLR-M Time Code Cable - 6 Foot
Weight: 0.2458 lbs.
Price:
$36.95
  XLM-DIN-010
Laird DIN 1.0/2.3 to XLR-M Time Code Cable - 10 Foot
Weight: 0.3138 lbs.
Price:
$43.49
  XLM-DIN-015
Laird DIN 1.0/2.3 to XLR-M Time Code Cable - 15 Foot
Weight: 0.3988 lbs.
Price:
$51.49
  XLM-DIN-025
Laird DIN 1.0/2.3 to XLR-M Time Code Cable - 25 Foot
Weight: 0.5688 lbs.
Price:
$67.49
