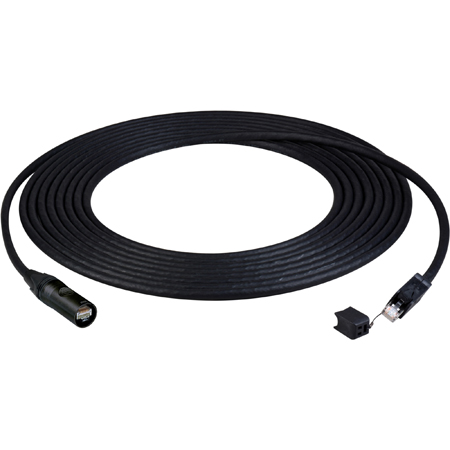

Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors - 5 Foot

Get larger image of Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors - 5 Foot


Laird, the leader in rugged 10G Ethernet RJ45 cables for 4K UHD transmission, introduces the TUFFCAT6A-EP series featuring studio & field tough Neutrik etherCON CAT6A RJ45 connectors and hostile environment tactical application cable. The cable plug carrier delivers a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The tactical cable is a shielded, extra-flexible and rugged Category 6A cable for networking and data applications constructed from four precision twisted-pairs that is tested to exceed TIA-568-C.2 specifications in 10G Cat6A applications. These cables are ideal for on location 10G Ethernet routing for both Internet service as well as video, audio and control transmission in 4K UHD productions. They are also a great fit for video over CAT6 extension systems, video over IP in location shooting or long run PTZ camera applications.

Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B

Features:

  • Ruggedized Cable and Connectors Designed for Repeated Connections
  • Extra-Flexible CAT6A Tactical Cable
  • RJ45 Strain Relief
  • Ergonomic Design for Easy Handling
  • Integral Latch Protection and Optimal Protective Caps
  • Intermateable with Existing etherCON CAT5

Specifications:

  • Tactical Category 6A Data Cable:
  • Pairs: 4 Twisted Pair
  • AWG: 24AWG
  • Stranding: 7/32 Stranded Tinned Copper
  • Jacketing material: TPE
  • Jacketing wall thickness: .039"
  • Jacketing diameter: .325" +/- .010"
  • Shield: 75% TC Braid, 100% Foil
  • Impedance: 100 Ω/ (+/- 15) 1 - 100MHz, 100Ω/ (+/- 25) 251 - 500MHz
  • Capacitance: 13.5 PF/FT@1MHz
  • DC Resistance: 14.0 Ω
  • Insulation: HDPE
  • Insulation wall thickness: .011"
  • Delay skew: <25ns
  • Max Voltage Rating: 300V TIA-568-C.2 Category 6 AND 6a
    Platinum Tools 10Gig RJ45 Shielded Connectors:
  • Contacts: 50µ gold contacts
    Neutrik NE8MX6-B etherCON RJ45 Connector Carrier:
  • Lifetime: >1000 Mating Cycles
  • Power over Ethernet: PoE++acc. IEEE 802.3bt
  • Insulation resistance: >0.5 GΩ

Warranty:

  • 1 Year

Download the TUFFCAT6A-EP Series Datasheet


  TUFFCAT6A-EP-005
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors - 5 Foot
Weight: 0.3611 lbs.
Price:
$77.95
  TUFFCAT6A-EP-010
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors - 10 Foot
Weight: 0.6011 lbs.
Price:
$86.95
  TUFFCAT6A-EP-025
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors - 25 Foot
Weight: 1.3211 lbs.
Price:
$114.49
  TUFFCAT6A-EP-050
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors - 50 Foot
Weight: 2.5211 lbs.
Price:
$160.49
  TUFFCAT6A-EP-075
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors - 75 Foot
Weight: 4.9021 lbs.
Price:
$205.95
  TUFFCAT6A-EP-100
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors- 100 Foot
Weight: 4.9211 lbs.
Price:
$251.95
  TUFFCAT6A-EP-150
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors- 150 Foot
Weight: 7.3211 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$343.49
  TUFFCAT6A-EP-200
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors- 200 Foot
Weight: 9.7211 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$434.95
  TUFFCAT6A-EP-250
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors- 250 Foot
Weight: 12.1211 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$526.95
  TUFFCAT6A-EP-300
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors- 300 Foot
Weight: 14.5211 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$618.49
  TUFFCAT6A-EP-325
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 to ProShell RJ45 Locking Connectors- 325 Foot
Weight: 15.7211 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$663.95
