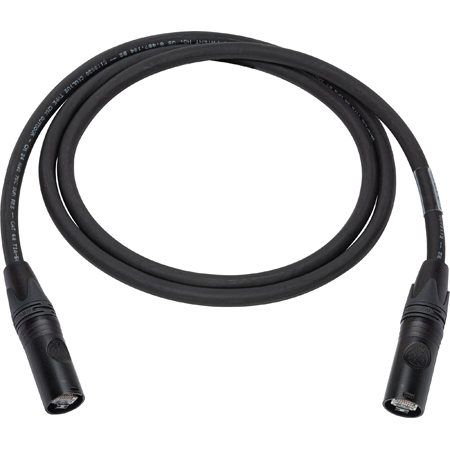

Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 5 Foot

Get larger image of Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 5 Foot


Laird, the leader in rugged 10G Ethernet RJ45 cables for 4K UHD transmission, introduces the TUFFCAT6A-EC series featuring studio & field tough Neutrik etherCON CAT6A RJ45 connectors and hostile environment tactical application cable. The cable plug carrier delivers a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The tactical cable is a shielded, extra-flexible and rugged Category 6A cable for networking and data applications constructed from four precision twisted-pairs that is tested to exceed TIA-568-C.2 specifications in 10G Cat6A applications. These cables are ideal for on location 10G Ethernet routing for both Internet service as well as video, audio and control transmission in 4K UHD productions. They are also a great fit for video over CAT6 extension systems, video over IP in location shooting or long run PTZ camera applications.


Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features:

  • Ruggedized Cable and Connectors Designed for Repeated Connections
  • Extra-Flexible CAT6A Tactical Cable
  • RJ45 Strain Relief
  • Ergonomic Design for Easy Handling
  • Integral Latch Protection and Optimal Protective Caps
  • Intermateable with Existing etherCON CAT5

Specifications:

  • Tactical Category 6A Data Cable
  • 4 Twisted Pair 24AWG 7/32 Stranded Tinned Copper
  • Impedance: 100 Ω/ (+/- 15) 1 - 100MHz, 100Ω/ (+/- 25) 251 - 500MHz
  • Capacitance: 13.5 PF/FT@1MHz
  • DC Resistance: 14.0 Ω
  • Insulation: HDPE Shield: 75% TC Braid, 100% Foil UL Approved for Sunlight Resistant & Direct Burial
  • Meets IEEE 1202 Flame Test
  • Max Voltage Rating 300V TIA-568-C.2 Category 6 AND 6a
  • Applications Cable is suitable for use in Class I Division II Hazardous Locations
  • Neutrik NE8MC etherCON RJ45 Connector
  • Rated for 1000 Mating Cycles
  • Unique Chuck-type Strain Relief Diecast Shell

Warranty:

  • 1 Year

Download the TUFFCAT6A-EC Series Datasheet


  TUFFCAT6A-EC-005
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 5 Foot
Weight: 0.3814 lbs.
Price:
$89.95
  TUFFCAT6A-EC-006
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 6 Foot
Weight: 0.4294 lbs.
Price:
$91.95
  TUFFCAT6A-EC-010
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 10 Foot
Weight: 0.6214 lbs.
Price:
$98.95
  TUFFCAT6A-EC-015
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 15 Foot
Weight: 0.8614 lbs.
Price:
$108.49
  TUFFCAT6A-EC-025
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 25 Foot
Weight: 1.3414 lbs.
Price:
$126.49
  TUFFCAT6A-EC-050
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 50 Foot
Weight: 2.5414 lbs.
Price:
$172.49
  TUFFCAT6A-EC-075
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 75 Foot
Weight: 3.739 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$217.95
  TUFFCAT6A-EC-100
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 100 Foot
Weight: 4.9414 lbs.
Price:
$263.95
  TUFFCAT6A-EC-150
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 150 Foot
Weight: 7.3414 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$355.49
  TUFFCAT6A-EC-200
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 200 Foot
Weight: 9.7414 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$447.49
  TUFFCAT6A-EC-250
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 250 Foot
Weight: 12.1414 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$538.95
  TUFFCAT6A-EC-300
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 300 Foot
Weight: 14.5414 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$630.49
  TUFFCAT6A-EC-325
Laird Super Tough Shielded Cat6A Cable with etherCON RJ45 Locking Connector System - 325 Foot
Weight: 15.7414 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$676.49
