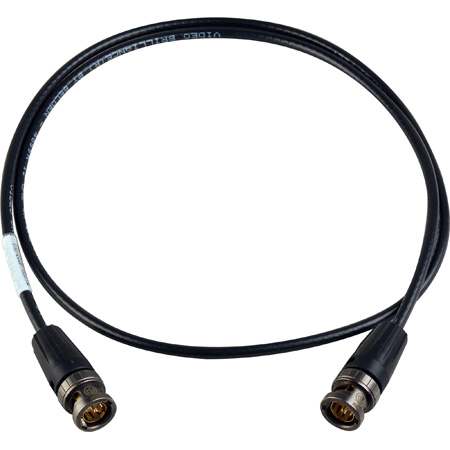

Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 3 Foot

Get larger image of Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 3 Foot


The Laird RTBNC-4855 Series assemblies, with Neutrik's rearTWIST UHD BNC connectors and Belden 4855R thin profile, Mini-RG59 cable, are built for 12G-SDI/4K extended bandwidth applications. Neutrik's rearTWIST UHD BNC achieves increased headroom and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. The rear twist technology simplifies insertion and removal of recessed BNC panel connectors and allows for easy patch bay interface. No special BNC removal tool is required; simply use the rear boot twist. Belden's premium low loss 4855R coax is rated for 12G-SDI runs over 150 feet. The cable's new braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Neutrik rearTWIST UHD BNC is designed for UHD-Data Transmission
  • Fully compatible with conventional BNC Chassis connectors
  • Improved return loss values at high frequency
  • UL1666 compliant and CMR compliant
  • Indoor-Riser Rated
  • Suitable applications- Ultra-High-Definition Digital Video, 4K Single-link 12 Gb/s UHDTV, 4K D-Cinema, 8K Quad-link UHDTV

Specifications:

    Belden 4855R Specifications:
  • RG Type: Mini 59
  • Conductor AWG: 23 AWG
  • Conductor Stranding: Solid
  • Conductor Diameter: 0.023in
  • Conductor Material: Silvered Copper
  • Insulation Material: Polyethylene (Gas Injected Foam)
  • Insulation Diameter: 0.102in
  • Outer Shield Layer 1 Type: Tape
  • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
  • Outer Shield Layer 2 Type: Braid
  • Outer shield Layer 2 Material/Coverage: Tinned Copper/95%
  • Outer Jacket Material: Polyvinyl Chloride
  • Outer Jacket Diameter: 0.159in
  • Overall Cable Diameter: 0.159in
  • Nom. Conductor DCR: 19.7 Ohm/1000ft
  • Nom. Outer Shield DCR: 3.8 Ohm/1000ft (12 Ohm/km)
  • Nom. Capacitance Cond-to-Shield: 16.3 pF/ft (53.5 pF/m)
  • Nom. Characteristic Impedance: 75 Ohm
  • Nom. Velocity of Prop.: 82%
  • Min. Bend Radius: 1.6in

    Neutrik rearTwist BNC Connector Specifications:
  • Dielectric Strength: 1.5 kVdc
  • Impedance: 75Ω
  • Insulation Resistance: > 5 GΩ
  • Lifetime: > 1000 mating cycles
  • VSWR:
    • ≤1.06 / >30 dB up to 6 GHz
    • ≤1.13 / >24 dB up to 12 GHz
    • ≤1.22 / >20 dB up to 18 Ghz

Warranty:

  • 1 Year

Download the RTBNC-4855 Series Datasheet


  RTBNC-4855-003
Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 3 Foot
Weight: 0.1148 lbs.
Price:
$28.49
  RTBNC-4855-006
Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 6 Foot
Weight: 0.1658 lbs.
Price:
$32.49
  RTBNC-4855-010
Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 10 Foot
Weight: 0.2338 lbs.
Price:
$38.49
  RTBNC-4855-015
Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 15 Foot
Weight: 0.3188 lbs.
Price:
$45.95
  RTBNC-4855-025
Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 25 Foot
Weight: 0.4888 lbs.
Price:
$60.95
  RTBNC-4855-050
Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 50 Foot
Weight: 0.9138 lbs.
Price:
$97.95
  RTBNC-4855-075
Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 75 Foot
Weight: 1.3388 lbs.
Price:
$134.95
  RTBNC-4855-100
Laird 12G-SDI 4K UHD Cable with NEUTRIK rearTWIST UHD BNC Connectors and Belden Mini RG-59 4855R Cable - 100 Foot
Weight: 1.7638 lbs.
Price:
$171.95
