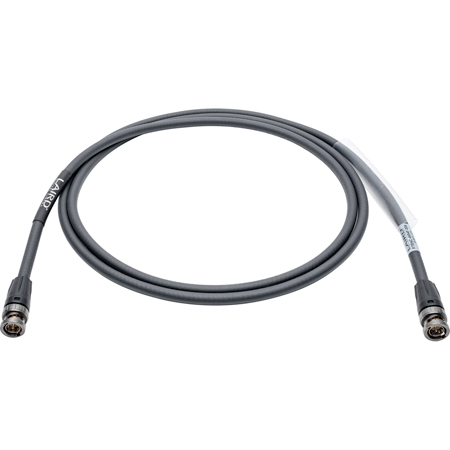

The Laird RTBNC-4694F Series assemblies, with Neutrik's rearTWIST UHD BNC connectors and Belden 4694F RG6 cable, are built for 12G-SDI/4K extended bandwidth applications. Neutrik's rearTWIST UHD BNC achieves increased headroom and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. The rear twist technology simplifies insertion and removal of recessed BNC panel connectors and allows for easy patch bay interface. No special BNC removal tool is required; simply use the rear boot twist.
The RTBNC-4694F series offers a much more flexible option when compared to our standard RTBNC-4694R versions. With the flexible design, these cable also lose a bit of distance utilizing a coax rated for 12G-SDI runs up to 125 feet when compared to 190 feet with the 4694R models. The cable's new-age braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.
12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 125 Feet for 12G-SDI even though Belden may show this distance as 184 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.
Features:
- Neutrik rearTWIST UHD BNC designed for UHD-data Transmissions
- Fully compatible with conventional BNC Chassis connectors
- Improved return loss values at high frequency
- Swiss Antraloy Plating
- Flexible 4K UHD Coax Cable
- Meets NEC/UL-CM, CEC/C(UL)-CM requirements
- Indoor Rated
- UL1685 (UL loading)
- Suitable applications SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P
Specifications:
- Cable Type: RG6
- AWG: 18
- Conductor Stranding: Solid
- Number of Coax: 1
- Conductor Material: Silvered Copper (SC)
- Conductor Nom Diameter: 0.040in (1.016mm)
- Outer Jacket Material: Polyvinyl Chloride (PVC)
- Outer Jacket Nom Diameter: 0.276in (7.010mm)
- Insulation: Gas Injected PE-Polyethylene (Foam)
- Insulation Nom Diameter: 0.180in (4.572 mm)
- Outer Shield layer 1 Type: Braid
- Outer Shield layer 1 Material: Tinned Copper (TC) 95% coverage
- Outer Shield layer 2 Type: Braid
- Outer Shield layer 2 Material: Tinned Copper (TC) 95% coverage
- Outer Jacket Material: Polyvinyl Chloride (PVC)
- Outer Jacket Nom Diameter: 0.276in (7.010mm)
- Nom Impedance: 75Ω
- Nom Inductance: 0.106 µH/ft
- Nom Capacitance Conductor Shield: 15.9 pF/ft (52.2 pF/m)
- Nom Velocity of Propagation: 85%
- Nom Delay: 1.20 ns/ft
- Nom Conductor DC resistance: 6.4 Ohm/1000ft (21 Ohm/km)
- Nom Outer Shield DC resistance: 1.5 Ohm/1000ft (4.9 Ohm/km)
- Return Loss:
-5 MHz - 1600 MHz: 23 dB
-1600 MHz - 4500 MHz: 21 dB
-4500 MHz - 12000 MHz: 15 dB - Min Bend Radius Fixed: 2.75in (69.9mm)
- Min Bend Radius Flexing: 2.75in (69.9mm)
- Max Pull Tension: 80lbs (36kg)
- Max Operating Voltage: 300 V RMS
- Operating Temperature: -22�F to 167�F (-30�C To +75�C)
- Weight: 0.048lbs/ft
- Connection Type: BNC
- Shell: Brass
- Shell Plating: Antraloy
- Insertion Force: <25N
- Lifetime: >1000 mating cycles
- Contacts: Brass
- Contact Resistance Inner: ≤ 3 mΩ
- Contact Resistance Outer: ≤ 2 mΩ
- Dielectric Strength: 1.5 kVdc
