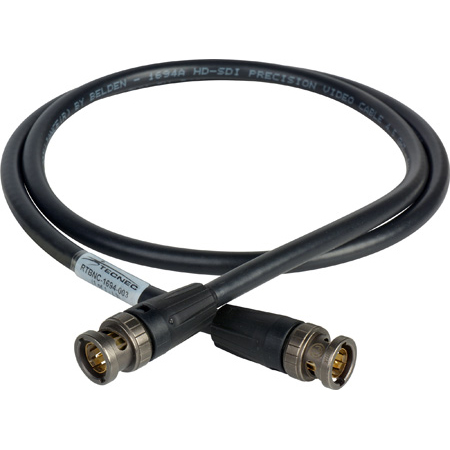

Laird RTBNC-1694-003 6G-SDI 2K UHD Cable w/ Neutrik rearTWIST UHD BNC Connectors & Belden 1694A Cable - 3 Foot

Get larger image of Laird RTBNC-1694-003 6G-SDI 2K UHD Cable w/ Neutrik rearTWIST UHD BNC Connectors & Belden 1694A Cable - 3 Foot


Laird RTBNC-1694-003 UHD BNC Cable Assembly with True 75 ohm 6G-2K Performance The Laird RTBNC-1694-003 6G-2K UHD Cable Assembly with Neutrik rearTWIST UHD BNC connectors & Belden RG6 cable is built for extended bandwidth for 6G-2K video applications. Neutrik's rearTWIST UHD BNC achieves increased headroom and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption. The rear twist technology simplifies insertion and removal of recessed BNC panel connectors and allows for easy patch bay interface. No special BNC removal tool is required; simply use the rear boot twist. The 18AWG Belden digital coaxial cable features a solid .023 " bare copper conductor, gas-injected foam HDPE insulation, Duofoil + tinned copper braid shield (95% coverage), and a PVC jacket. Custom lengths available.

Features:

  • High frequency optimized contact pin and insulator for UHD transmissions
  • Improved return loss values at high frequencies
  • Extended bandwidth for 6G-2K video applications
  • For recessed panel mount BNC connections
  • Rear twist design is patch bay friendly
  • No special BNC removal tool required
  • Fully compatible with conventional BNC chassis connectors
  • UL CMR cable

Specifications:

  • Neutrik rearTwist UHD BNC Connector
  • Male BNC 75 Ohm
  • Bayonet Locking Device
  • Jacket Crimping
  • Brass Contacts Antraloy Shell Plating

    Belden Cable
  • Digital coaxial 1694A
  • RG Type: 6/U
  • AWG: 18 Nom.
  • Characteristic Impedance: 75 +/- 1.5O

Warranty:

  • 1 Year

Download the RTBNC-1694 Series Datasheet


  RTBNC-1694-003
Laird RTBNC-1694-003 6G-SDI 2K UHD Cable w/ Neutrik rearTWIST UHD BNC Connectors & Belden 1694A Cable - 3 Foot
Weight: 0.2114 lbs.
Price:
$23.95
