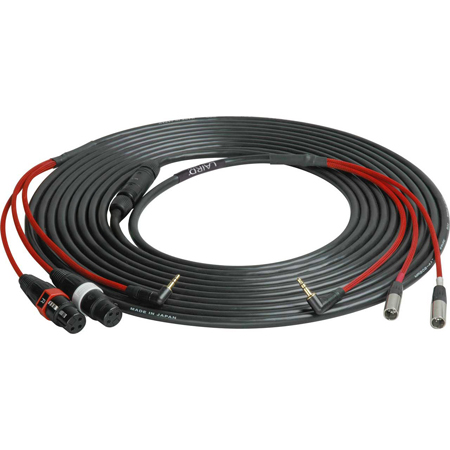

Laird Red One Quick Disconnect Camera-Field Mixer Cable

Get larger image of Laird Red One Quick Disconnect Camera-Field Mixer Cable


For All RED ONE camera owners. This cable functions as a breakaway and adapter all in one. The cable converts the RED connectors TA3 to standard XLR Female. Designed to attach to any standard mixer/recording device with XLR interface. The Breakaway feature allows you keep the cable permanently attached to the RED ONE allowing you to conveniently attach and re-attach the cable as needed. The camera portion that attaches to the RED ONE is 2Ft long. The RD1-MIX series cables feature self-contained Canare pliable 3 channel triplex cable which is easy to work with. 2-Channel XLR Male to 2-Channel XLR Female audio lines transmit a stereo feed. The third channel returns the headphone feed from the camera to the monitor input of a portable field mixer via a stereo mini connection. The camera side of the cable contains an additional 3.5mm female end for headset monitoring. Cables are supplied with a multi-pin quick disconnect that permits the cameraman to split from the mixer when the action calls for it.

Warranty:

  • 1 Year



  RD1-MIX-15
Laird RD1-MIX-15 Red One Quick Disconnect Camera-Field Mixer Cable w/ 2 Female XLRs and 1 3.5mm Right-Angle TRS Plug - 1
Weight: 1.634 lbs.
Price:
$207.95
  RD1-MIX-25
Laird RD1-MIX-25 Red One Quick Disconnect Camera-Field Mixer Cable w/ 2 Female XLRs and 1 3.5mm Right-Angle TRS Plug - 2
Weight: 1.922 lbs.
Price:
$169.95

Recommended Accessories

  4855R-B-B-BK-006
Laird 4855R-B-B-BK-006 Mini-RG59 12G-SDI/4K UHD Single Link BNC Cable - 6 Foot Black
Select Colors:
Weight: 0.156 lbs.
Price:
$28.95
