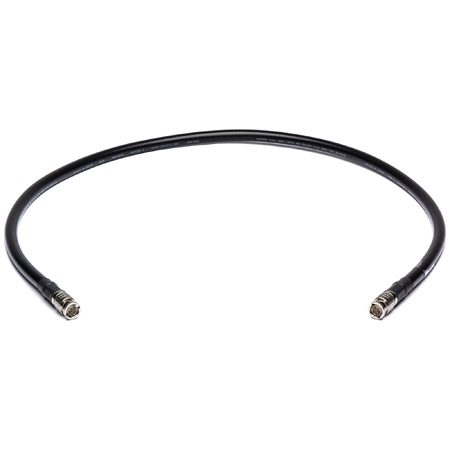

Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 3 Foot

Get larger image of Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 3 Foot


For superior long distance 12G-SDI performance, the Laird L8CUHD-B-B series BNC cable stands alone. It supports the market's longest 12G-SDI 4K UHD runs at an eye popping 352 feet! Why trust your video signal with any other cable? The Laird L8CUHD BNC cable meets the demands of big bandwidth requirements in eSports, live events and similar arena venues. The L-8CUHD BNC cable is specially designed for single link SMPTE 2082-1 supported runs. The copper foil and high-density tinned copper braided shield ensure your video signals maximum isolation from hum and noise. The cable also features a flame resistant UL 1666 Riser rated jacket making it perfect for installs.

12G-SDI Maximum Distance
**Laird Certifies this cable to work at a Max Transmission Distance of 352 Feet for 12G-SDI. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present, there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.**

Features:

  • Designed for UHD and 4K Video Transport
  • Fixed and Cable Reel Deployment in Studios, Trucks, and Permanent Installations
  • BNC Connectors Feature Elongated Body for Better Grip
  • SMPTE ST-2082-1 Compliant for 12GSDI Transmission
  • Max. UHD Over Single Link Transmission Distance 352ft
  • Flame Resistance UL 1666 Riser Rated Jacket

Specifications:

    Canare L-8CUHD Coaxial Cable
  • Number of Conductors: 1
  • Overall Diameter: 0.43" (11.1mm)
  • Inner Conductor Overall Diameter: 0.07" (2mm)
  • Inner Conductor Material: Annealed Copper
  • Inner Conductor AWG: 13
  • Insulation Overall Diameter: 0.32" (8.26mm)
  • Insulation Material: Foamed Polyethylene
  • Insulation Thickness: 0.12" (3.13mm)
  • Outer Conductor 1 Overall Diameter: 0.32" (8.3mm)
  • Outer Conductor 1 Material: Copper Laminated Tape
  • Outer Conductor 1 Thickness: 0.001" (0.04mm)
  • Outer Conductor 2 Overall Diameter: 0.35" (9.0mm)
  • Outer Conductor 2 Material/Coverage %: Tinned Annealed Copper/≥90%
  • Outer Conductor 2 Pitch: ≤1.57" (40mm)
  • Sheath Thickness: 0.04" (1.05mm)
  • Sheath Material: PVC
  • Rated Voltage: AC 60Vrms
  • Temperature: -22°F - 167°F (-30°C - 75°C)
  • DC Resistance:
    - Inner Conductor: ≤5.8Ω/km
    - Outer Conductor: ≤6.3Ω/km
  • Insulation Resistance: ≥1000MΩ·km
  • Characteristic Impedance: 75Ω
  • Nom. Attenuation:
    - 10MHz: 1.2dB/100m
    - 750MHz: 9.1dB/100m
    - 6.0GHz: 27.9dB/100m
  • Bend Radius:
    Operating: 2.58" (65.53mm)
    Installation: 6.45" (163.83mm)

    Canare BNC Connector
  • Nom. Impedance: 75Ω
  • Insulation Resistance: 5000MΩ
  • Contact Resistance:
    - Between external Contacts: 3mΩ or less
    - Between center Contacts: 6mΩ or less
  • Return Loss:
    - 26.4dB or more (0 - 3GHz)
    - 20dB or more (0 - 6GHz)
    - 15dB or more (0 - 12GHz)

Warranty:

  • Limited Lifetime
Download the L8CUHD-B-B Series Datasheet


  L8CUHD-B-B-003
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 3 Foot
Weight: 0.3689 lbs. 		Price:
$45.95
  L8CUHD-B-B-006
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 6 Foot
Weight: 0.6584 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$53.49
  L8CUHD-B-B-010
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 10 Foot
Weight: 1.0444 lbs. 		Price:
$62.95
  L8CUHD-B-B-025
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 25 Foot
Weight: 2.4919 lbs. 		Price:
$98.49
  L8CUHD-B-B-050
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 50 Foot
Weight: 4.9044 lbs. 		Price:
$158.49
  L8CUHD-B-B-075
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 75 Foot
Weight: 7.3169 lbs. 		Price:
$217.95
  L8CUHD-B-B-100
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 100 Foot
Weight: 9.7294 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$277.49
  L8CUHD-B-B-125
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 125 Foot
Weight: 12.1419 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$336.95
  L8CUHD-B-B-150
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 150 Foot
Weight: 14.5544 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$396.95
  L8CUHD-B-B-200
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 200 Foot
Weight: 19.3794 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$515.95
  L8CUHD-B-B-250
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 250 Foot
Weight: 24.2044 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$635.49
  L8CUHD-B-B-300
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 300 Foot
Weight: 29.0294 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$754.49
  L8CUHD-B-B-328
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 328 Foot
Weight: 31.7314 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$821.49
  L8CUHD-B-B-350
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 350 Foot
Weight: 33.8544 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$873.49
  L8CUHD-B-B-400
Laird L8CUHD-B-B RG-225 75 Ohm 12G-SDI/4K UHD Long Distance Coax BNC Male Cable - 400 Foot
Weight: 38.6794 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$992.95
