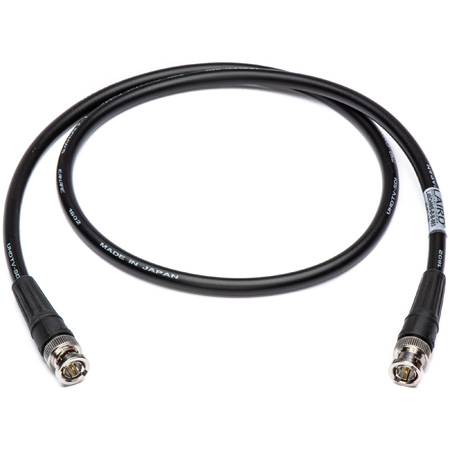

The super flexible L45CHWS-B-B series 12G-SDI BNC cable by Laird is designed for mobile and stage applications. Its stranded center conductor delivers the flexibility required for bending and coiling. You'll be amazed at the soft cable feel! The Laird L45CHWS-B-B 4KUHD series BNC cables are compliant with ST 2082-1 standards for 12G-SDI formats and are assembled in the USA with premium Canare cable and connectors.
12G-SDI Maximum Distance
**Laird Certifies this cable to work at a Max Transmission Distance of 98 Feet for 12G-SDI. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present, there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.**
Features:
- Designed for 4KUHD Video Transport
- Flexible and Durable, Designed for Repeated Bending
- Backwards Compatible with 6G-SDI and 3G-SDI
- Max. Transmission Distance: 12G-SDI - 98ft
- Compliant with SMPTE 424M & ST 2082-1 Standards
Specifications:
Canare L-4.5CHWS- Number of Conductor: 1
- Outer Diameter: 0.28" (7.2mm)
- Inner Conductor AWG: 20
- Inner Conductor Outer Diameter: 0.04" (1.02mm)
- Inner Conductor Material: Annealed Copper
- Insulation Thickness: 0.07" (1.78mm)
- Insulation Outer Diameter: 0.17" (4.57mm)
- Insulation Material: Foamed Polyethylene
- Outer Shield Layer 1 Outer Diameter: 0.19" (5mm)
- Outer Shield Layer 1 Material/Coverage: Annealed Copper/≥93%
- Outer Shield Layer 2 Outer Diameter: 0.21" (5.5mm)
- Outer Shield Layer 2 Material/Coverage: Annealed Copper/≥90%
- DC Resistance Inner Conductor: ≤ 32.7Ω/km
- DC Resistance Outer Shield: ≤ 7.5Ω/km
- Insulation Resistance: ≥1000MΩ-km
- Characteristic Impedance: 75Ω
- Nom. Capacitance: 53nF/km
- Nom. Attenuation:
- 10MHz: 2.5dB/100m
- 1.5GHz: 33.3dB/100m
- 3.0GHz: 49.1dB/100m - Bending Radius: 1.68" (43.2mm)
Canare Connector - Nom. Impedance: 75Ω
- Insulation Resistance: 5000MΩ or more
- Contact Resistance between External Contacts: 3mΩ or less
- Contact Resistance between Center Contacts: 6mΩ or less
- Return Loss: 26.4dB or more
- VSWR: 1.1 or less
