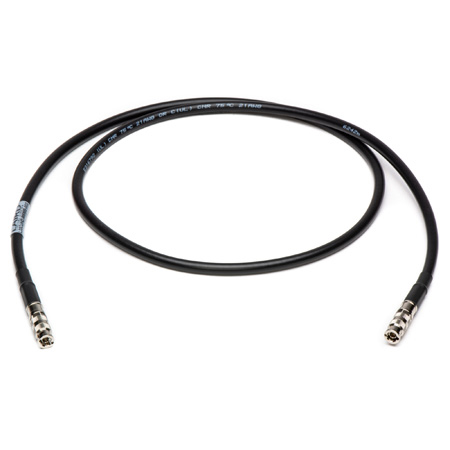

Laird L33CUHD-MBMB-003 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 3 Foot

Get larger image of Laird L33CUHD-MBMB-003 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 3 Foot


You've made the investment in a 12G / 4K UHD workflow so now is not the time to skimp on a cheap cable to capture or transmit your signals. Your video deserves the highest quality interconnects to maintain signal integrity and the Laird L33CUH-MBMB HD-BNC/Micro BNC cable delivers. It's the most advanced cable on the market for effectively transmitting 12G-SDI signals in and out of routers and distribution points. The best names in broadcast TV, esports, live events and commercial production workflows rely on the precision, hand crafted quality of Laird. Utilizing Canare L-3.3CUHD coaxial, these 12G-SDI HD-BNC/Micro BNC cables are the right choice to future-proof new rack to rack studio builds, OB truck layouts, patching and content delivery networks as a permanent install solution. The Laird L33CUH-MBMB Micro BNC cable is developed to be fully interchangeable with Amphenol HD BNC patch points. This coax cable has enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable-sized coax. Cables are fully SMPTE ST-2082-1 compliant and hand crafted with Canare L-3.3CUHD miniature coaxial and HBCP-D33UHD Micro BNC connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems.

Features:

  • Compliant with SMPTE ST-2082-1 standards
  • Ultra-Low Loss 12G-SDI Coax Cable
  • Copper Foil and High-Density Tinned Copper Braided Shielding
  • Flame resistance UL 1666 Riser
  • Highly-Foamed, Multi-Layer PE Insulation
  • Max Transmission Distance @12G-SDI: 190 Feet

Specifications:

  • Canare L-3.3CUHD 75Ω Coaxial Cable
  • Center Conductor = Annealed Copper 21 AWG
  • Outer Conductor = Copper Laminated Tape
  • Attenuation dB/100m @ 6GHz = 68.5 OD 5.5mm
  • Tensile Strength: >=12.8Mpa
  • Nominal Capacitance: 55nF/km (1kHz)
  • Canare HBCP-D33UHD Micro BNC Plugs
  • 12G-SDI 4KUHD
  • Return Loss: 3GHz - 20dB/ 6GHz - 13dB/ 12GHz - 8dB
  • Nominal Impedance: 75Ω

Warranty:

  • 1 Year



  L33CUHD-MBMB-003
Laird L33CUHD-MBMB-003 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 3 Foot
Weight: 0.1234 lbs.
Price:
$28.49
  L33CUHD-MBMB-006
Laird L33CUHD-MBMB-006 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 6 Foot
Weight: 0.2044 lbs.
Price:
$30.49
  L33CUHD-MBMB-010
Laird L33CUHD-MBMB-010 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 10 Foot
Weight: 0.3124 lbs.
Price:
$33.49
  L33CUHD-MBMB-025
Laird L33CUHD-MBMB-025 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 25 Foot
Weight: 0.7174 lbs.
Price:
$44.49
  L33CUHD-MBMB-050
Laird L33CUHD-MBMB-050 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 50 Foot
Weight: 1.3924 lbs.
Price:
$63.49
  L33CUHD-MBMB-075
Laird L33CUHD-MBMB-075 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 75 Foot
Weight: 2.0674 lbs.
Price:
$82.49
  L33CUHD-MBMB-100
Laird L33CUHD-MBMB-100 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 100 Foot
Weight: 2.7424 lbs.
Price:
$101.49
  L33CUHD-MBMB-125
Laird L33CUHD-MBMB-125 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 125 Foot
Weight: 3.4174 lbs.
Price:
$119.49
  L33CUHD-MBMB-150
Laird L33CUHD-MBMB-150 12G-SDI 4K UHD Mini-Coax HD-BNC/Micro BNC Male to Male Cable - 150 Foot
Weight: 4.0924 lbs.
Price:
$138.49
