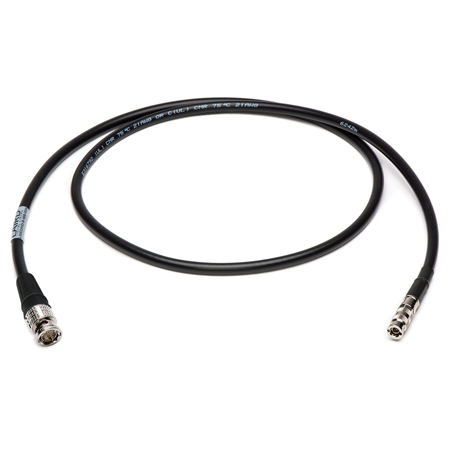

Laird L33CUHD-B-MB-001 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 1 Foot

Get larger image of Laird L33CUHD-B-MB-001 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 1 Foot


As 12G / 4K UHD continues to shape the landscape of broadcast TV, sports, live events and commercial production workflows, Laird delivers the most advanced BNC cables on the market for effectively transmitting 12G-SDI signals up to 100 feet. Utilizing Canare L-3.3CUHD coaxial, these 12G-SDI BNC cables are the right choice to future-proof new rack to rack studio builds, OB truck layouts, patching and content delivery networks as a permanent install solution. Its light weight and small diameter makes it an excellent option for camera to recorder and similar support interface products where 12G-SDI is run. This coax cable has enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable-sized coax. Cables are fully SMPTE ST-2082-1 compliant and hand crafted with Canare L-3.3CUHD miniature coaxial and BCP-D33UHD connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 100 Feet for 12G-SDI even though Canare may show this distance as 190 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Compliant with SMPTE ST-2082-1 Standards
  • Designed for Low Attenuation 3G/6G/12G-SDI Transmission
  • Copper Foil and High-Density Tinned Copper Braided Shielding
  • Flame Retardant Polyvinyl Sheath
  • Highly-Foamed, Multi-Layer PE Insulation

Specifications:

  • Canare L-3.3CUHD 75Ω Coaxial Cable
  • Canare Certified Max Transmission Distance: 190 Feet for 12G/4K
  • Laird Certified Max Transmission Distance: 100 Feet for 12G/4K
  • Center Conductor = Annealed Copper 21 AWG
  • Outer Conductor = 1/0.75A Cu Foil with TC Braid
  • Attenuation dB/100m @ 6GHz = 68.5
  • OD 5.5mm
  • Tensile Strength: >=12.8Mpa
  • Nominal Capacitance: 55nF/km (1kHz)
  • Canare BCP-D33UHD BNC Plugs
  • Return Loss: 3GHz - 26.4dB/ 6GHz - 20dB/ 12GHz - 15dB
  • Nominal Impedance: 75Ω Unbalanced
  • Insulation Resistance: 5000mΩ or More
  • Contact Resistance: Between External Contacts: 3mΩ or less; Between Center Contacts: 6mΩ or less
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year



  L33CUHD-B-MB-001
Laird L33CUHD-B-MB-001 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 1 Foot
Weight: 0.1044 lbs.
Price:
$25.95
  L33CUHD-B-MB-002
Laird L33CUHD-B-MB-002 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 2 Foot
Weight: 0.1044 lbs.
Price:
$26.49
  L33CUHD-B-MB-003
Laird L33CUHD-B-MB-003 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 3 Foot
Weight: 0.1314 lbs.
Price:
$26.95
  L33CUHD-B-MB-006
Laird L33CUHD-B-MB-006 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 6 Foot
Weight: 0.2124 lbs.
Price:
$27.95
  L33CUHD-B-MB-010
Laird L33CUHD-B-MB-010 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 10 Foot
Weight: 0.3204 lbs.
Price:
$30.95
  L33CUHD-B-MB-015
Laird L33CUHD-B-MB-015 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 15 Foot
Weight: 0.4554 lbs.
Price:
$33.95
  L33CUHD-B-MB-025
Laird L33CUHD-B-MB-025 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 25 Foot
Weight: 0.7254 lbs.
Price:
$41.49
  L33CUHD-B-MB-050
Laird L33CUHD-B-MB-050 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 50 Foot
Weight: 1.4004 lbs.
Price:
$58.95
  L33CUHD-B-MB-100
Laird L33CUHD-B-MB-100 12G-SDI 4K UHD Mini-Coax BNC Male to HD-BNC/Micro BNC Male Cable - 100 Foot
Weight: 2.7504 lbs.
Price:
$94.95
