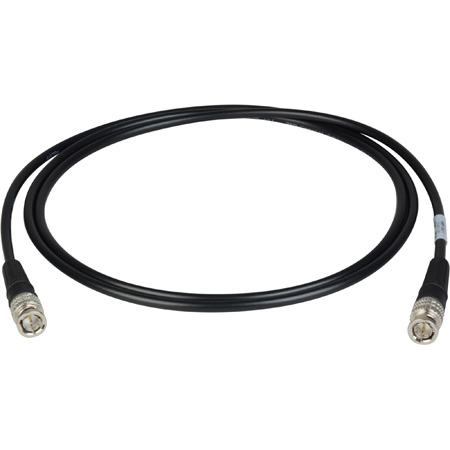

As 12G / 4K UHD continues to shape the landscape of broadcast TV, sports, live events and commercial production workflows, Laird delivers the most advanced BNC cables on the market for effectively transmitting 12G-SDI signals up to 190 feet. Utilizing Canare L-3.3CUHD coaxial, these 12G-SDI BNC cables are the right choice to future-proof new rack to rack studio builds, OB truck layouts, patching and content delivery networks as a permanent install solution. Its light weight and small diameter makes it an excellent option for camera to recorder and similar support interface products where 12G-SDI is run. This coax cable has enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable-sized coax. Cables are fully SMPTE ST-2082-1 compliant and hand crafted with Canare L-3.3CUHD miniature coaxial and BCP-D33UHD connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems.
Features:
- Compliant with SMPTE ST-2082-1 Standards
- Designed for Low Attenuation 3G/6G/12G-SDI Transmission
- Copper Foil and High-Density Tinned Copper Braided Shielding
- Flame Retardant Polyvinyl Sheath
- Highly-Foamed, Multi-Layer PE Insulation Max Transmission Distance @12G-SDI: 190 Feet
Specifications:
- Canare L-3.3CUHD 75Ω Coaxial Cable
- Center Conductor = Annealed Copper 21 AWG Outer Conductor = 1/0.75A Cu Foil with TC Braid
- Attenuation dB/100m @ 6GHz = 68.5
- OD 5.5mm
- Tensile Strength: >=12.8Mpa
- Nominal Capacitance: 55nF/km (1kHz)
- Canare BCP-D33UHD BNC Plugs
- Return Loss: 3GHz - 26.4dB/ 6GHz - 20dB/ 12GHz - 15dB
- Nominal Impedance: 75Ω Unbalanced
- Insulation Resistance: 5000mΩ or More
- Contact Resistance: Between External Contacts: 3mΩ or less; Between Center Contacts: 6mΩ or less
