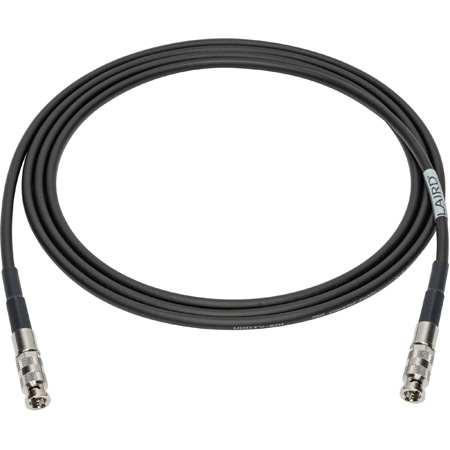

Laird L25CHWS-MBMB-001 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 1 Foot

Get larger image of Laird L25CHWS-MBMB-001 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 1 Foot


If you're needing a super low profile 12G-SDI BNC cable for your outside broadcast trucks and studio patches, the Laird L25CHWS series sets the gold standard! This series is based on Canareís L-2.5CHWS 12G coax which is incredibly flexible because of its stranded center conductor. It also features a very slim 0.165" O.D. All of this adds up to a lightweight 12G BNC cable thatís easy to patch in tight spaces.

Note: Canare does not certify this cable as 12G - however Laird independent testing has certified this up to 80 feet

Features:

  • Flexible, Lightweight, Thin Canare Coaxial Cable Designed for Repeated Bending
  • Highly-Foamed Insulation for Lower Attenuation
  • High-Density Double-Braided Shield Low Loss Canare BNC Connectors
  • Superior Cable Pull Strength

Specifications:

  • Laird Certified Max Transmission Distance: 80 Feet
  • 24 AWG Canare L-2.5CHWS Cable
  • Jacket: PVC Foam Polyethylene Dielectric
  • Stranded Annealed Copper Center Conductor
  • Dual Tinned Annealed Copper Braid Shields
  • Characteristic Impendence: 75 Ω
  • Nominal O.D.: 0.165 inch
  • Attenuation: 15.1 dB/100 Meters @ 135MHz
  • Connectors: Impedance 75 Ohm
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year



  L25CHWS-MBMB-001
Laird L25CHWS-MBMB-001 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 1 Foot
Weight: 0.0828 lbs.
Price:
$23.95
  L25CHWS-MBMB-003
Laird L25CHWS-MBMB-003 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 3 Foot
Weight: 0.1028 lbs.
Price:
$24.49
  L25CHWS-MBMB-006
Laird L25CHWS-MBMB-006 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 6 Foot
Weight: 0.1628 lbs.
Price:
$25.95
  L25CHWS-MBMB-010
Laird L25CHWS-MBMB-010 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 10 Foot
Weight: 0.2428 lbs.
Price:
$28.95
  L25CHWS-MBMB-015
Laird L25CHWS-MBMB-015 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 15 Foot
Weight: 0.3428 lbs.
Price:
$31.49
  L25CHWS-MBMB-025
Laird L25CHWS-MBMB-025 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 25 Foot
Weight: 0.5428 lbs.
Price:
$37.49
  L25CHWS-MBMB-050
Laird L25CHWS-MBMB-050 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 50 Foot
Weight: 1.0428 lbs.
Price:
$52.49
  L25CHWS-MBMB-075
Laird L25CHWS-MBMB-075 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 75 Foot
Weight: 1.5428 lbs.
Price:
$66.95
  L25CHWS-MBMB-100
Laird L25CHWS-MBMB-100 Canare L-2.5CHWS Ultra Slim 12G-SDI Cable with Canare Micro-BNC - 100 Foot
Weight: 2.0428 lbs.
Price:
$81.95
