Laird L25CHWS-BMB-001 Canare L-2.5CHWS Ultra Slim Cable with Canare BNC and Micro-BNC 75Ohm Connectors- 1 Foot

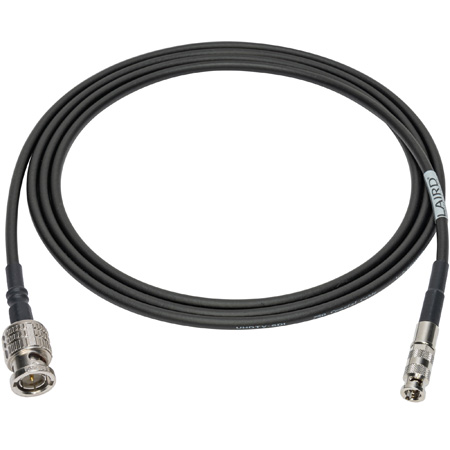

Get larger image of Laird L25CHWS-BMB-001 Canare L-2.5CHWS Ultra Slim Cable with Canare BNC and Micro-BNC 75Ohm Connectors- 1 Foot


If you're needing a super low profile 12G-SDI BNC cable for your outside broadcast trucks and studio patches, the Laird L25CHWS series sets the gold standard! This series is based on Canare's L-2.5CHWS 12G coax which is incredibly flexible because of its stranded center conductor. It also features a very slim 0.165" O.D. All of this adds up to a lightweight 12G cable that's easy to patch in tight spaces.

Features:

  • Flexible, Lightweight, Thin Canare Coaxial Cable Designed for Repeated Bending
  • Highly-Foamed Insulation for Lower Attenuation
  • High-Density Double-Braided Shield
  • Low Loss Canare Connectors
  • Superior Cable Pull Strength

Specifications:

  • 24 AWG Canare L-2.5CHWS Cable
  • Jacket: PVC Foam Polyethylene
  • Dielectric: Stranded
  • Annealed Copper Center Conductor
  • Dual Tinned Annealed Copper Braid Shields
  • Characteristic Impendence: 75 Ω
  • Nominal O.D.: 0.165 inch
  • Attenuation: 15.1 dB/100 Meters @ 135MHz
  • Connectors: Impedance 75 Ohm

Warranty:

  • 1 Year



  L25CHWS-BMB-001
Laird L25CHWS-BMB-001 Canare L-2.5CHWS Ultra Slim Cable with Canare BNC and Micro-BNC 75Ohm Connectors- 1 Foot
Weight: 0.0824 lbs.
Price:
$20.49
  L25CHWS-BMB-003
Laird L25CHWS-BMB-003 Canare L-2.5CHWS Ultra Slim Cable with Canare BNC and Micro-BNC 75Ohm Connectors- 3 Foot
Weight: 0.1024 lbs.
Price:
$20.95
  L25CHWS-BMB-006
Laird L25CHWS-BMB-006 Canare L-2.5CHWS Ultra Slim Cable with Canare BNC and Micro-BNC 75Ohm Connectors- 6 Foot
Weight: 0.1624 lbs.
Price:
$22.49
  L25CHWS-BMB-010
Laird L25CHWS-BMB-010 Canare L-2.5CHWS Ultra Slim Cable with Canare BNC and Micro-BNC 75Ohm Connectors- 10 Foot
Weight: 0.2424 lbs.
Price:
$22.95
  L25CHWS-BMB-015
Laird L25CHWS-BMB-015 Canare L-2.5CHWS Ultra Slim Cable with Canare BNC and Micro-BNC 75Ohm Connectors- 15 Foot
Weight: 0.3424 lbs.
Price:
$24.99
  L25CHWS-BMB-025
Laird L25CHWS-BMB-025 Canare L-2.5CHWS Ultra Slim Cable with Canare BNC and Micro-BNC 75Ohm Connectors- 25 Foot
Weight: 0.5424 lbs.
Price:
$31.95
