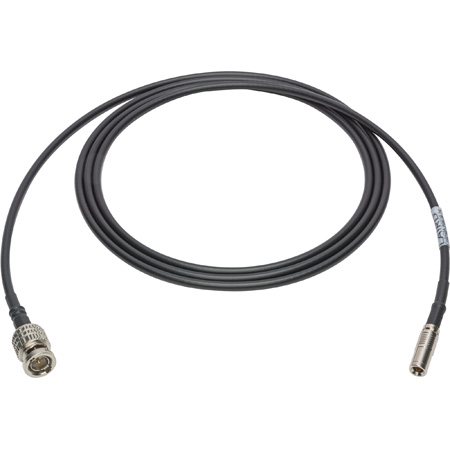

If you're looking for a thin profile 12G-SDI DIN 1.0/2.3 to BNC patch cable, reach for the Laird L25CHD-DIN-B. The L25CHD-DIN-B is built around Canare L-2.5CHD Ultra Slim coax making it the perfect cable to use behind rack, in outside broadcast trucks and in patch environments. The slim profile cable reduces weight and strain on connectors and patch points. The Canare Connectors used in the L25CHD-DIN-B cables features an elongated body for better finger tip gripping and twisting.
Features:
- Ideal for 12G-SDI / HD-SDI Distribution
- High Quality Canare Components
- Super Low Loss Coax Cable
- DIN Connector with Locking Mechanism
- Superior Pull Strength
- Elongated Connector Design for Stable Finger Grip
- Canare Cable Meets SMPTE 292M & 424M Compliance
- Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m
Specifications:
Canare L-2.5CHD:- Outer Diameter: 0.30in (7.7mm)
- Inner Conductor Construction: 1/0.59A
- Inner Conductor Outer Diameter: 0.023in (0.59mm)
- Inner Conductor Material: Annealed Copper
- Inner Conductor AWG: 23
- Insulation Outer Diameter: 0.03in (1.00mm)
- Insulation Thickness: 0.10in (2.59mm)
- Insulation Material: Foamed Polyethylene
- Outer Conductor 1 Thickness: 0.002in (0.06mm)
- Outer Conductor 1 Outer Diameter: 0.10in (2.7mm)
- Outer Conductor 1 Material: Aluminum Tape
- Outer Conductor 2 Construction: 16/ 7/0.12TA
- Outer conductor 2 Pitch: ≤0.94in (≤24mm)
- Outer Conductor 2 Outer Diameter: 0.12in (3.2mm)
- Outer Conductor 2 Material/Coverage: Tinned Annealed Copper/95%
- Sheath Thickness: 0.01in (0.5mm)
- Sheath Material: Flame Retardant Polyvinyl Chloride
- Weight: 0.017lbs/ft (2.6kg/100m)
- Rated Voltage: AC 60Vrms
- Temperature Range: -4°F to 167°F (-20°C to 75°C)
- Inner Conductor DC Resistance: ≤ 66.9Ω/km
- Outer Conductor DC Resistance: ≤ 16.9Ω/km
- Insulation Resistance: ≥ 1000MΩ-km
- Characteristic Impedance: 75±3Ω
- Nom Capacitance: 54.5nF/km (1kHz)
- Tensile Strength: ≥ 13.8 MPa
- Elongation: ≥ 150%
- Permission Tension: ≤ 18 N
- Bend Radius (Installed): 1.81in
- Bend Radius (Flexing): 4.54in
Canare Connectors: - Nom impedance:
-Canare BNC: 75Ω unbalanced
-Canare DIN: 75Ω unbalanced - Insulation Resistance:
-Canare BNC: 5000MΩ or more
-Canare DIN: 1000MΩ or more - Voltage Standing Wave Ratio:
-Canare BNC: 1.1 or less
-Canare DIN: 1.2 or less (0 ~ 3GHz)
