Laird Ultra Slim Video Cable Canare L-2.5CHD DIN Cable

Get larger image of Laird Ultra Slim Video Cable Canare L-2.5CHD DIN Cable

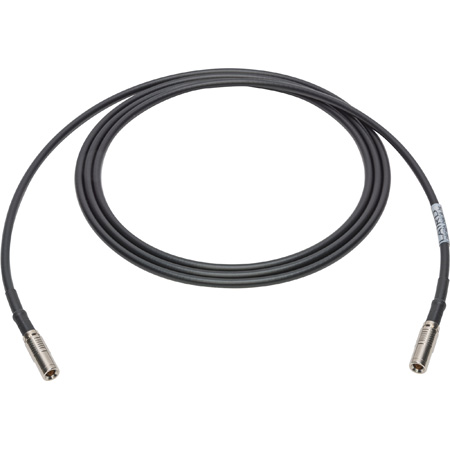

If you're looking for a thin profile 12G-SDI DIN 1.0/2.3 patch cable, reach for the Laird L25CHD-DIN. The L25CHD-DIN is built around Canare L-2.5CHD Ultra Slim coax making it the perfect cable to use behind rack, in outside broadcast trucks and in patch environments. The slim profile cable reduces weight and strain on connectors and patch points. The Canare DIN Connector used in the L25CHD-DIN cables features an elongated body for better finger tip gripping and twisting.

Features:

  • Ideal for 12G-SDI / HD-SDI Distribution
  • High Quality Canare Components
  • Super Low Loss Coax Cable
  • DIN Connector with Locking Mechanism
  • Superior Pull Strength
  • Elongated Connector Design for Stable Finger Grip
  • Canare Cable Meets SMPTE 292M & 424M Compliance
  • Maximum 12G-SDI Transmission Distance for L-2.5CHD: 38m

Specifications:

  • Canare L-2.5CHD:
  • Outer Diameter: 0.30in (7.7mm)
  • Inner Conductor Construction: 1/0.59A
  • Inner Conductor Outer Diameter: 0.023in (0.59mm)
  • Inner Conductor Material: Annealed Copper
  • Inner Conductor AWG: 23
  • Insulation Outer Diameter: 0.03in (1.00mm)
  • Insulation Thickness: 0.10in (2.59mm)
  • Insulation Material: Foamed Polyethylene
  • Outer Conductor 1 Thickness: 0.002in (0.06mm)
  • Outer Conductor 1 Outer Diameter: 0.10in (2.7mm)
  • Outer Conductor 1 Material: Aluminum Tape
  • Outer Conductor 2 Construction: 16/ 7/0.12TA
  • Outer conductor 2 Pitch: ≤0.94in (≤24mm)
  • Outer Conductor 2 Outer Diameter: 0.12in (3.2mm)
  • Outer Conductor 2 Material/Coverage: Tinned Annealed Copper/95%
  • Sheath Thickness: 0.01in (0.5mm)
  • Sheath Material: Flame Retardant Polyvinyl Chloride
  • Weight: 0.017lbs/ft (2.6kg/100m)
  • Rated Voltage: AC 60Vrms
  • Temperature Range: -4°F to 167°F (-20°C to 75°C)
  • Inner Conductor DC Resistance: ≤ 66.9Ω/km
  • Outer Conductor DC Resistance: ≤ 16.9Ω/km
  • Insulation Resistance: ≥ 1000MΩ-km
  • Characteristic Impedance: 75±3Ω
  • Nom Capacitance: 54.5nF/km (1kHz)
  • Tensile Strength: ≥ 13.8 MPa
  • Elongation: ≥ 150%
  • Permission Tension: ≤ 18 N
  • Bend Radius (Installed): 1.81in
  • Bend Radius (Flexing): 4.54in

    Canare DCP-C25HD connector:
  • Nom Impedance: 75Ω unbalanced
  • Insulation Resistance: 1000MΩ or more
  • Voltage Standing Wave Ratio: 1.2 or less (0 ~ 3GHz)
  • Contact Resistance between Center Contacts: 6mΩ or less
  • Contact Resistance between External contacts: 3mΩ or less

Warranty:

  • 1 Year

Download the L25CHD-DIN Series Datasheet


  L25CHD-DIN-01
Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 1 Foot
Weight: 0.1638 lbs.
Price:
$25.95
  L25CHD-DIN-03
Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 3 Foot
Weight: 0.2138 lbs.
Price:
$26.49
  L25CHD-DIN-06
Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 6 Foot
Weight: 0.3638 lbs.
Price:
$27.49
  L25CHD-DIN-10
Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 10 Foot
Weight: 0.5638 lbs.
Price:
$28.95
  L25CHD-DIN-15
Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 15 Foot
Weight: 0.8138 lbs.
Price:
$30.49
  L25CHD-DIN-25
Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 25 Foot
Weight: 1.3138 lbs.
Price:
$33.95
  L25CHD-DIN-50
Laird Canare L-2.5CHD Ultra Slim 12G-SDI Cable with Canare DIN 1.0/2.3 Connectors - 50 Foot
Weight: 2.5638 lbs.
Price:
$42.95
