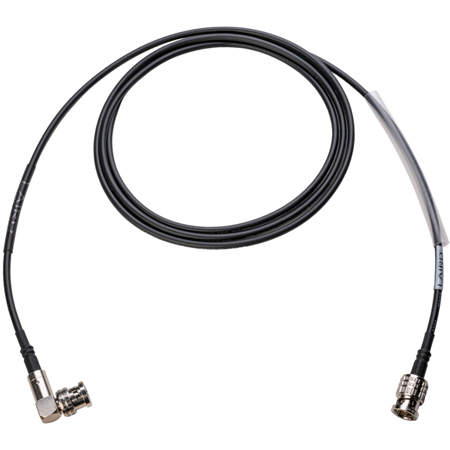

Utilizing Canare's L-2.5CHD low-profile Mini-RG59 style coax, Laird delivers the perfect right angle BNC cable for camera rigs and rack components where space is tight and superior strain relief will improve the life of your cable. Laird delivers the most advanced BNC coaxial cables on the market for 12G / 4K UHD applications in broadcast TV, sports, live events, and commercial production workflows. These cables are ready to meet the highest broadcast standards and are 100% sweep tested to 12GHz to conform to SMPTE standards all the way up to SMPTE 2082-1.
The Right Angle BNC connector allows for a stress reducing installation on the cable and connector in tight spaces. This design also helps prevent cable bending or kinking. Their compact design also improves cable routing and organization for cleaner, more professional installs in racks and patching scenarios. The Canare L-2.5CHD cable is thin, flexible and light making these cables perfect for outside broadcast production trucks and rigs.
Features:
- Ideal for 12G-SDI Distribution
- High Quality Canare Components
- Super Low Loss Coax Cable
- Easy Finger Grip Connectors
- Superior Pull Strength
- Cable & Connectors Meet SMPTE 292M & 424M Compliance
Specifications:
- Canare L-2.5CHD
- Outer Diameter: 0.30in (7.7mm)
- Inner Conductor Construction: 1/0.59A
- Inner Conductor Outer Diameter: 0.023in (0.59mm)
- Inner Conductor Material: Annealed Copper
- Inner Conductor AWG: 23
- Insulation Outer Diameter: 0.03in (1.00mm)
- Insulation Thickness: 0.10in (2.59mm)
- Insulation Material: Foamed Polyethylene
- Outer Conductor 1 Thickness: 0.002in (0.06mm)
- Outer Conductor 1 Outer Diameter: 0.10in (2.7mm)
- Outer Conductor 1 Material: Aluminum Tape
- Outer Conductor 2 Construction: 16/ 7/0.12TA
- Outer conductor 2 Pitch: ≤0.94in (≤24mm)
- Outer Conductor 2 Outer Diameter: 0.12in (3.2mm)
- Outer Conductor 2 Material/Coverage: Tinned Annealed Copper/95%
- Sheath Thickness: 0.01in (0.5mm)
- Sheath Material: Flame Retardant Polyvinyl Chloride
- Weight: 0.017lbs/ft (2.6kg/100m)
- Rated Voltage: AC 60Vrms
- Temperature Range: -4°F to 167°F (-20°C to 75°C)
- Inner Conductor DC Resistance: ≤ 66.9Ω/km
- Outer Conductor DC Resistance: ≤ 16.9Ω/km
- Insulation Resistance: ≥ 1000MΩ-km
- Characteristic Impedance: 75±3Ω
- Nom Capacitance: 54.5nF/km (1kHz)
- Tensile Strength: ≥ 13.8 MPa
- Elongation: ≥ 150%
- Permission Tension: ≤ 18 N
- Bend Radius (Installed): 1.81in
- Bend Radius (Flexing): 4.54in
Canare Right Angle BNC Connector: - Nom. Impedance: 75Ω unbalanced
- Insulation Resistance: 1000Ω or more
- Contact Resistance between External Contacts: 3 mΩ or less
- Contact Resistance between Center Contacts: 6 mΩ or less
- Return Loss:
-26.4 dB or more (~3 GHz)
-20 dB or more (~6 GHz)
-10 dB or more (~12 GHz) - Operating Temperature: -40°F to 248°F (-40°C to 120°C)
Canare BNC Connector: - Gender: Plug
- Nom. Impedance: 75Ω unbalanced
- Insulation Resistance: 5000MΩ or more
- Contact Resistance between External Contacts: 3mΩ or less
- Contact Resistance between Center Contacts: 6mΩ or less
- Return Loss: 26.4dB or more
- Operating Temperature: -40°F to 185°F (-40°C to 85°C)
