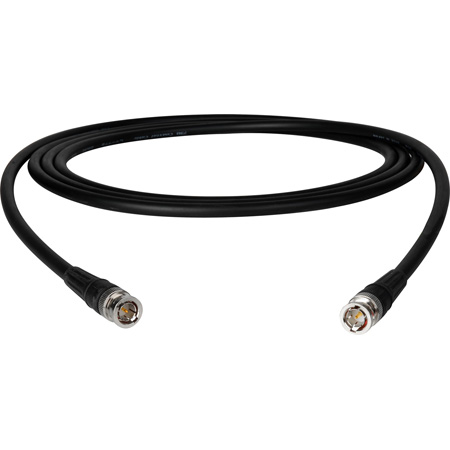

Laird Double Shielded Premium 75 Ohm BNC Broadcast Cable

Get larger image of Laird Double Shielded Premium 75 Ohm BNC Broadcast Cable


Laird BNC cords are useful for both inter-rack harness wiring and longer video cable runs. This super flexible LV-77S type pre-made 75 Ohm BNC-BNC assembly is available in a variety of lengths. Our low loss cord offers outstanding video bandwidth performance because all components used are impedance matched for cleaner and sharper video resolution. These cables are perfect for..... Broadcast Transmission. Analog and Digital. ENG/EFP. Inter-Rack Wiring. Video Patch Cords.

Features:

  • Super Flexible, Canare LV-77S easy payout & wrap-up
  • High Quality True 75 Ohm Amphenol Connectors
  • Excellent Connector Pull Strength
  • High Density Copper Braid, or Foil + Braid Shields
  • Variety of Matte Finish Jacket Colors
  • 100% Test and Quality Controlled

Specifications:

  • Canare LV-77S 75 Ohm Video Coaxial Cable
  • Nom. O.D (mm): 7.7
  • AWG: 22
  • Inner Cond. O.D (mm): 0.78
  • Insulation O.D (mm): 4.8
  • Inner Cond. Resist.: 5.0
  • Attenuation (dB/100m - 10MHz): 3.4

Warranty:

  • 1 Year

Applications

  • Analog & Digital Video
  • Studio Tie Lines
  • Patch Cords
  • Rack Wiring
  • Satellite Headends
  • OB Vans
Download the DSB-B Series Datasheet


  DSB-B-10
Laird Canare LV-77S Double-Shielded 75 Ohm BNC to BNC Broadcast Video Cable - 10 Foot
Select Colors:
Weight: 0.7304 lbs.
Price:
$40.49
  DSB-B-100
Laird Canare LV-77S Double-Shielded 75 Ohm BNC to BNC Broadcast Video Cable - 100 Foot
Select Colors:
Weight: 6.6704 lbs.
Price:
$159.95
  DSB-B-150
Laird Canare LV-77S Double-Shielded 75 Ohm BNC to BNC Broadcast Video Cable - 150 Foot
Select Colors:
Weight: 9.9704 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$226.49
  DSB-B-200
Laird Canare LV-77S Double-Shielded 75 Ohm BNC to BNC Broadcast Video Cable - 200 Foot
Select Colors:
Weight: 13.2704 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$292.95
  DSB-B-25
Laird Canare LV-77S Double-Shielded 75 Ohm BNC to BNC Broadcast Video Cable - 25 Foot
Select Colors:
Weight: 1.7204 lbs.
Price:
$60.49
  DSB-B-3
Laird Canare LV-77S Double-Shielded 75 Ohm BNC to BNC Broadcast Video Cable - 3 Foot
Select Colors:
Weight: 0.2684 lbs.
Price:
$31.49
  DSB-B-50
Laird Canare LV-77S Double-Shielded 75 Ohm BNC to BNC Broadcast Video Cable - 50 Foot
Select Colors:
Weight: 3.3704 lbs.
Price:
$93.95
