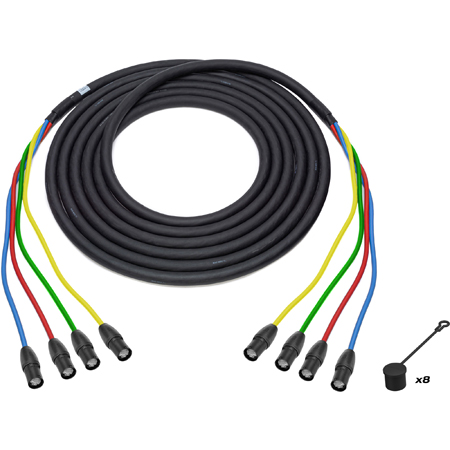

Laird CAT6AXTRM4EE-010 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 10 Foot

Get larger image of Laird CAT6AXTRM4EE-010 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 10 Foot


The tactical grade CAT6AXTRM4EE series by Laird offers a rugged field option for Data Transmission, Video Walls, DANTE and other Digital Audio Protocols. It will quickly become recognized as the strongest link in your data chain in studios, live events, staging and rental. These shielded Cat6a cables give you 4-Channels terminated with locking Neutrik etherCON RJ45 TOP cable carrier RJ45 housings to give you years of repeated connections in mobile productions or harsh environments. The Laird CAT6AXTRM4EE is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

Note: Will not intermate with NE8FDY-C6 and NE8FDY-C6-B CAT6 chassis connectors.

Features:

  • Rugged Outer TPE Jacket
  • Four Cat6A Shieled Elements
  • Enhanced 500 MHz Bandwidth
  • ETL Verified to TIA-568-C.2
  • ETL Verified to ISO/IEC 11801
  • Neutrik NE8MX-B-TOP etherCON TOP Series Connectors
  • Less Attenuation & Greater Resistance to EMI

Specifications:

  • Four-Channel Category 6A Shielded Snake Cable:
  • Cabled Elements: (4) Cat6A Shielded Elements
  • Cat6 Element: Center Conductor: (8) 23AWG Solid BC (Configured as 4 Pairs) - per CAT6 Element
  • Cat6 Element: Insulation: Polyethylene
  • Cat6 Element: Shield: 100% Foil w/ TC Drain Wire
  • Cat6 Element: Jacket: PVC, .244"
  • Cable Overall Diameter: .894"
  • Capacitance: 5.6 nF/100m (mutual) 330 pF/100m (pair-to-pair ground unbalanced)
  • Operating Temperature: -4°F - 140°F (-20°C - 60°C)

    Neutrik NE8MX-B-TOP etherCON TOP Series Connectors:
  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Protection Class: IP65 (mated)
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)

Warranty:

  • 1 Year

Download the CAT6AXTRM4EE Series Datasheet
Download the CAT6AXTRM4EP Series Datasheet
Download the CAT6AXTRM4PP Series Datasheet


  CAT6AXTRM4EE-006
Laird CAT6AXTRM4EE-006 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 6 Foot
Weight: 2.7816 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$182.49
  CAT6AXTRM4EE-010
Laird CAT6AXTRM4EE-010 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 10 Foot
Select Lengths:
Weight: 4.2696 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$208.95
  CAT6AXTRM4EE-015
Laird CAT6AXTRM4EE-015 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 15 Foot
Weight: 6.1296 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$241.49
  CAT6AXTRM4EE-025
Laird CAT6AXTRM4EE-025 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 25 Foot
Weight: 9.8496 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$307.49
  CAT6AXTRM4EE-050
Laird CAT6AXTRM4EE-050 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 50 Foot
Weight: 19.1496 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$472.49
  CAT6AXTRM4EE-075
Laird CAT6AXTRM4EE-075 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 75 Foot
Weight: 28.4496 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$636.95
  CAT6AXTRM4EE-100
Laird CAT6AXTRM4EE-100 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 100 Foot
Weight: 37.7496 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$801.95
  CAT6AXTRM4EE-125
Laird CAT6AXTRM4EE-125 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 125 Foot
Weight: 47.0496 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$966.49
  CAT6AXTRM4EE-150
Laird CAT6AXTRM4EE-150 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 150 Foot
Weight: 56.3496 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,131.49
  CAT6AXTRM4EE-200
Laird CAT6AXTRM4EE-200 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 200 Foot
Weight: 74.9496 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,460.95
  CAT6AXTRM4EE-250
Laird CAT6AXTRM4EE-250 4 Channel Cat6A Tactical Cable with RJ45 etherCON TOP Connectors - 250 Foot
Weight: 93.5496 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,790.49
  CAT6AXTRM4EP-006
Laird CAT6AXTRM4EP-006 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 6 Foot
Weight: 2.6668 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$189.95
  CAT6AXTRM4EP-010
Laird CAT6AXTRM4EP-010 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 10 Foot
Select Lengths:
Weight: 4.1548 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$216.49
  CAT6AXTRM4EP-015
Laird CAT6AXTRM4EP-015 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 15 Foot
Weight: 6.0148 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$248.95
  CAT6AXTRM4EP-025
Laird CAT6AXTRM4EP-025 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 25 Foot
Weight: 9.7348 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$314.95
  CAT6AXTRM4EP-050
Laird CAT6AXTRM4EP-050 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 50 Foot
Weight: 19.0348 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$479.95
  CAT6AXTRM4EP-075
Laird CAT6AXTRM4EP-075 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 75 Foot
Weight: 28.3348 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$644.49
  CAT6AXTRM4EP-100
Laird CAT6AXTRM4EP-100 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 100 Foot
Weight: 37.6348 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$809.49
  CAT6AXTRM4EP-125
Laird CAT6AXTRM4EP-125 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 125 Foot
Weight: 46.9348 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$973.95
  CAT6AXTRM4EP-150
Laird CAT6AXTRM4EP-150 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 150 Foot
Weight: 56.2348 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,138.95
  CAT6AXTRM4EP-200
Laird CAT6AXTRM4EP-200 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 200 Foot
Weight: 74.8348 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,468.49
  CAT6AXTRM4EP-250
Laird CAT6AXTRM4EP-250 4 Ch Cat6A Tactical Cable with RJ45 etherCON TOP to ProShell RJ45/10G Connectors - 250 Foot
Weight: 93.4348 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,797.95
  CAT6AXTRM4PP-006
Laird CAT6AXTRM4PP-006 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 6 Foot
Weight: 2.552 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$197.49
  CAT6AXTRM4PP-010
Laird CAT6AXTRM4PP-010 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 10 Foot
Select Lengths:
Weight: 4.04 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$223.95
  CAT6AXTRM4PP-015
Laird CAT6AXTRM4PP-015 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 15 Foot
Weight: 5.9 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$256.95
  CAT6AXTRM4PP-025
Laird CAT6AXTRM4PP-025 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 25 Foot
Weight: 9.62 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$322.49
  CAT6AXTRM4PP-050
Laird CAT6AXTRM4PP-050 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 50 Foot
Weight: 18.92 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$487.49
  CAT6AXTRM4PP-075
Laird CAT6AXTRM4PP-075 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 75 Foot
Weight: 28.22 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$651.95
  CAT6AXTRM4PP-100
Laird CAT6AXTRM4PP-100 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 100 Foot
Weight: 37.52 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$816.95
  CAT6AXTRM4PP-125
Laird CAT6AXTRM4PP-125 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 125 Foot
Weight: 46.82 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$981.49
  CAT6AXTRM4PP-150
Laird CAT6AXTRM4PP-150 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 150 Foot
Weight: 56.12 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,146.49
  CAT6AXTRM4PP-200
Laird CAT6AXTRM4PP-200 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 200 Foot
Weight: 74.72 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,475.95
  CAT6AXTRM4PP-250
Laird CAT6AXTRM4PP-250 4 Channel Cat6A Tactical Cable with ProShell RJ45/10G Connectors - 250 Foot
Weight: 93.32 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,805.49
