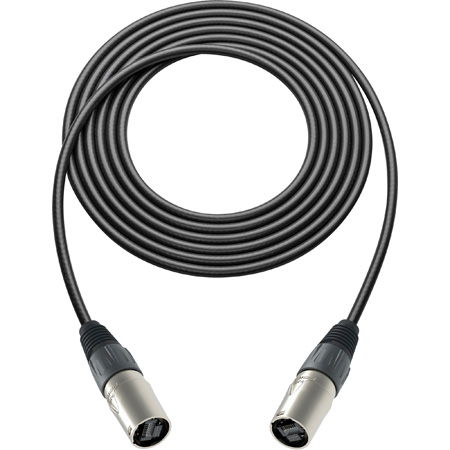

Laird Neutrik etherCON / Belden Data Tuff CAT5e Cable Assemblies

Get larger image of Laird Neutrik etherCON / Belden Data Tuff CAT5e Cable Assemblies


Laird's CAT5e Extreme etherCON cables are high quality CAT-5e cables built with Belden 7923A DataTuff cable with Neutrik NE8MC RJ45 heavy duty cable end housings. Cables are designed to withstand punishing conditions in the field or on-stage. The cable features four Cat 5e 24 AWG bonded-pairs in an industrial grade oil and UV-resistant PVC jacket suited for outdoor harsh environments. Signal bandwidth sits at 350MHz enhanced Category 5e for Gigabit Ethernet, 100BaseTX and 100BaseVG ANYLAN applications in NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51 and RS-422.


Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features:

  • Belden 7923A Paired CAT5e DataTuff Twisted Pair Cable
  • Neutrik etherCON NE8MX-1 CAT5 Connector
  • Four Cat 5e 24 AWG Bonded-Pairs
  • UV-Resistant PVC Jacket Suited for Outdoor & Harsh Environments

Specifications:

  • Belden 7923A Paired CAT5e DataTuff Twisted Pair Cable
  • Conductor AWG: 24
  • Conductor Number of Pairs: 4
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
  • UL Rating Temp: 75°C
  • Operating Temp: -40°C To +75°C
  • Storage Temp: -25°C To +75°C
  • Max. Pull Tension: 40 lbs
  • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
  • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, 1202 Vertical Tray, IEC 60332-1-2
  • NEC / UL Compliance: 800, CMR;CMX-Outdoor;CMG
  • CEC / C(UL) Compliance: CMX-Outdoor;CMG
  • Data Category: Category 5e
  • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e

    Neutrik etherCON NE8MX-1
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Temperature range: -30 °C to +80 °C

Warranty:

  • 1 Year

Download the CAT5XTRM Series Datasheet


  CAT5XTRM-100
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 100 Foot
Weight: 3.229 lbs.
Price:
$154.49
  CAT5XTRM-125
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 125 Foot
Weight: 3.929 lbs.
Price:
$186.49
  CAT5XTRM-15
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 15 Foot
Weight: 0.849 lbs.
Price:
$45.95
  CAT5XTRM-150
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 150 Foot
Weight: 4.629 lbs.
Price:
$217.95
  CAT5XTRM-175
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 175 Foot
Weight: 5.329 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$249.95
  CAT5XTRM-20
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 20 Foot
Weight: 0.989 lbs.
Price:
$52.49
  CAT5XTRM-200
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 200 Foot
Weight: 6.029 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$281.95
  CAT5XTRM-225
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 225 Foot
Weight: 6.729 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$313.49
  CAT5XTRM-25
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 25 Foot
Weight: 1.129 lbs.
Price:
$58.95
  CAT5XTRM-250
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 250 Foot
Weight: 7.429 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$345.49
  CAT5XTRM-3
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 3 Foot
Weight: 0.513 lbs.
Price:
$30.95
  CAT5XTRM-30
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 30 Foot
Weight: 1.269 lbs.
Price:
$64.95
  CAT5XTRM-35
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 35 Foot
Weight: 1.409 lbs.
Price:
$71.49
  CAT5XTRM-50
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 50 Foot
Weight: 1.829 lbs.
Price:
$90.49
  CAT5XTRM-6
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 6 Foot
Weight: 0.597 lbs.
Price:
$34.49
  CAT5XTRM-75
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 75 Foot
Weight: 2.529 lbs.
Price:
$122.49
  CAT5XTRM-10
Laird CAT5e Extreme Cable w/ Belden 7923A DataTuff Cable & Neutrik etherCON Connectors - 10 Foot
Weight: 0.709 lbs.
Price:
$39.49
