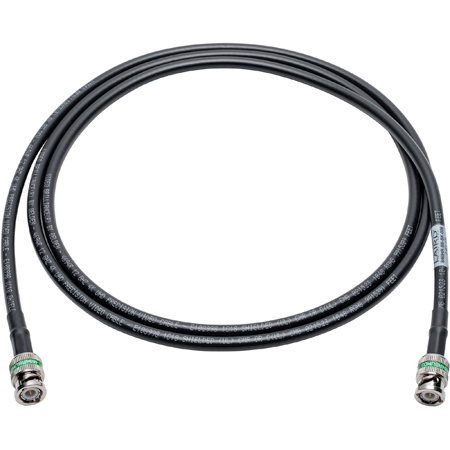

Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG6 BNC cables are designed to handle 12GHz 4K UHD signals over 190 feet (3G-SDI up to 540 feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4694R 4K Ultra-High-Definition RG6 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4694R Series is the 12G-SDI equivalent of Belden's famous 1694A cable. It features a silver plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.
12G-SDI Maximum Distance Laird Certifies this cable to work at a Max Transmission Distance of 190 Feet for 12G-SDI even though Belden may show this distance as 257 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.
Features:
Designed for 12GHz, 4K UHD Signal Transmission
Durable 18AWG, Precision Coax Cable
High Quality 75Ω Belden Connectors
Easy Identification with Colored Connector Bands
Maximize Broadcast Signal Integrity
Meets: SMPTE ST 2082-1 (12GB/s UHDTV), ST-2801-1 (6GB/s UHDTV), and SMPTE 424M (3 Gb/s HD-SDI 1080P)
Specifications:
Belden 4694R 12G SDI Coax Cable with PVC Jacket
Belden Certified Max Transmission Distance: 12G signals up to 257 feet, 6G up to 374 feet, and 3G up to 538 feet
Laird Certified Max Transmission Distance: 190 Feet for 12G/4K
Supports 4K UHD Signal Transmission
RG Type: RG-6
Cable Insulation: Gas-injected Foam HDPE
Min. Bend Radius: 2.75 in (69.9 mm)
Conductor: Silver-plated Copper
Conductor Size: 18 AWG
Outer Shield: Duofoil Bonded to the Core + Tinned Copper Braid Shield
Conductor DC Resistance: 20.9984 DCR@20°C (Ohm/1000ft)
Nominal Capacitance Conductor to Shield: 52.168pF/m
Belden 4694RBUHD3 12 GHz BNC Crimp Connector
Nominal Impedance: 75Ω
RG Type: 6
Body Material: Brass, Nickel Plated
Contact Material: Brass, Gold Plated
** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **
