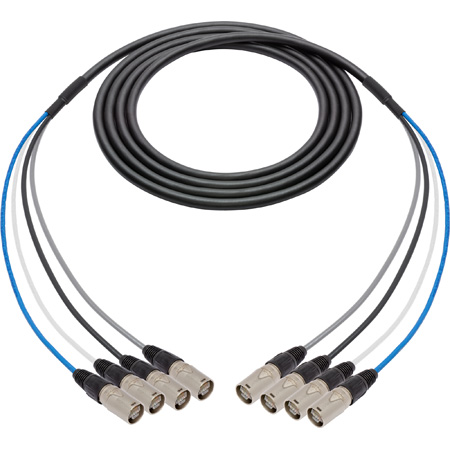

Laird 4C6SNKEC-006 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 18 Inch Fanouts - 6 Foot

Get larger image of Laird 4C6SNKEC-006 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 18 Inch Fanouts - 6 Foot


Ease your AV Over IP network installations with Laird 4C6SNKEC Series 4-Channel CAT6 snake cables. These cables are assembled with Neutrik etherCON connectors making them an ideal choice for stage and studio installs where a rugged and reliable connection are necessary. They are also a great fit when using Luminex and similar ethernet switches in Dante applications. Cables are assembled using an exclusive Laird bundled 4-channel Ethernet Snake cable featuring a Belden 3612 CAT6 equivalent. These cables are perfect for premise horizontal Category 6 wiring designed for Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51 and RS-422 applications.


Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features:

  • 4 Cables in One Single Jacket
  • Designed for Ethernet Applications
  • Keep Cables Organized for Quick Cable Runs
  • Cat6 Belden Cable
  • Locking Neutrik etherCON Connectors

Specifications:

  • Belden 3612 Riser/CMR Cat 6+ Premium Premise Horizontal Cable (4x Bundle)
  • Conductor AWG: 23
  • Conductor Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Conductor No. of Pairs: 4
  • Conductor Count: 8
  • Total Number of Pairs: 4
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Max. Conductor DCR: 77 Ohm/km
  • Max. DCR Unbalance: 3%
  • Max. Capacitance Unbalance: 330 pF/100m
  • Nom. Mutual Capacitance: 15.5 pF/ft
  • UL Voltage Rating: 300 V (CMR)
  • UL Rating: 75°C
  • Operating Temp: -20°C To +75°C
  • Installation Temp: 0°C To +50°C
  • Storage Temp: -20°C To +75°C
  • Max. Pull Tension: 25 lbs
  • Environmental Suitability: Riser, Indoor
  • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2

    Neutrik etherCON NE8MX-1
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Temperature range: -30 °C to +80 °C

Warranty:

  • 1 Year

Download the 4C6SNKEC Series Datasheet


  4C6SNKEC-006
Laird 4C6SNKEC-006 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 18 Inch Fanouts - 6 Foot
Weight: 1.4864 lbs.
Price:
$166.49
  4C6SNKEC-010
Laird 4C6SNKEC-010 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 10 Foot
Weight: 2.0704 lbs.
Price:
$188.49
  4C6SNKEC-015
Laird 4C6SNKEC-015 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 15 Foot
Weight: 2.8004 lbs.
Price:
$216.95
  4C6SNKEC-025
Laird 4C6SNKEC-025 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 25 Foot
Weight: 4.2604 lbs.
Price:
$265.95
  4C6SNKEC-050
Laird 4C6SNKEC-050 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 50 Foot
Weight: 7.9104 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$403.49
  4C6SNKEC-075
Laird 4C6SNKEC-075 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 75 Foot
Weight: 11.5604 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$539.95
  4C6SNKEC-100
Laird 4C6SNKEC-100 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 100 Foot
Weight: 15.2104 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$660.95
  4C6SNKEC-125
Laird 4C6SNKEC-125 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 125 Foot
Weight: 18.8604 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$794.49
  4C6SNKEC-150
Laird 4C6SNKEC-150 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 150 Foot
Weight: 22.5104 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$928.49
  4C6SNKEC-200
Laird 4C6SNKEC-200 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 200 Foot
Weight: 29.8104 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,168.49
  4C6SNKEC-250
Laird 4C6SNKEC-250 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 250 Foot
Weight: 37.1104 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,428.95
  4C6SNKEC-300
Laird 4C6SNKEC-300 4-Channel Belden Cat6 Ethernet Cable with etherCON Connectors & 24 Inch Fanouts - 300 Foot
Weight: 44.4104 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,690.49
