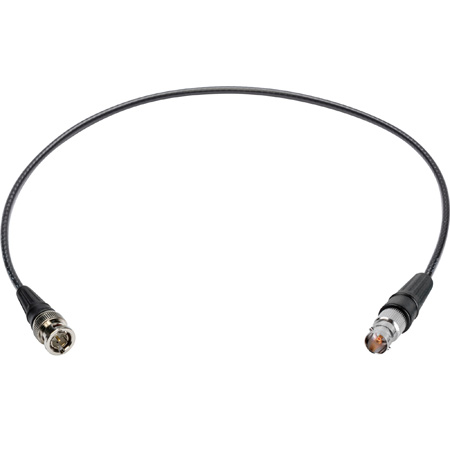

Laird 4855R-B-BF Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black

Get larger image of Laird 4855R-B-BF Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black


Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 117 feet (3G-SDI up to 310 Feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition Mini-RG59 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855 Series is the 12G-SDI equivalent of Belden's famous 1855 cable. It features a silver plated copper center conductor and a low profile diameter of less than 1/8" making it the ideal choice for patch bays and OB trucks. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Designed for UHD and 4K Video Transport 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • Single Link BNC Simplifies Installations
  • Optimized Transmission Distance for UHDTV
  • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
  • Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards

Specifications:

  • Belden 12G SDI Mini-RG59 Coax Cable with PVC Jacket
  • Belden Certified Max Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 149 feet
  • Laird Certified Max Transmission Distance: 117 Feet for 12G/4K
  • 12G SDI Optimized Amphenol BNC Connectors Compatible with 12GSDI single link format devices
  • Nominal Impedance: 75Ω
  • Conductor: Silver Plated Copper
  • Insulation: Gas Injected Foam HDPE
  • Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
  • Conductor DC Resistance: 19.700 [email protected]°C(Ohm/1000ft)
  • Outer Shield Resistance: 3.900 [email protected]°C(Ohm/1000ft)
  • Nominal Inductance: .107 ΜH/ft
  • Nominal Capacitance Conductor to Shield: 16.3 pF/ft
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year



  4855R-B-BF-001
Laird 4855R-B-BF-001 Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black - 1 Foot
Weight: 0.0904 lbs.
Price:
$22.49
  4855R-B-BF-003
Laird 4855R-B-BF-003 Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black - 3 Foot
Weight: 0.1074 lbs.
Price:
$22.95
  4855R-B-BF-006
Laird 4855R-B-BF-006 Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black - 6 Foot
Weight: 0.1584 lbs.
Price:
$26.49
  4855R-B-BF-010
Laird 4855R-B-BF-010 Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black - 10 Foot
Weight: 0.2264 lbs.
Price:
$31.49
  4855R-B-BF-015
Laird 4855R-B-BF-015 Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black - 15 Foot
Weight: 0.3114 lbs.
Price:
$36.95
  4855R-B-BF-025
Laird 4855R-B-BF-025 Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black - 25 Foot
Weight: 0.4814 lbs.
Price:
$47.95
  4855R-B-BF-050
Laird 4855R-B-BF-050 Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black - 50 Foot
Weight: 0.9064 lbs.
Price:
$75.95
  4855R-B-BF-18IN
Laird 4855R-B-BF-18IN Mini-RG59 12G-SDI/4K UHD BNC to BNC Female Single Link Cable - Black - 18 Inch
Weight: 0.0904 lbs.
Price:
$22.95
