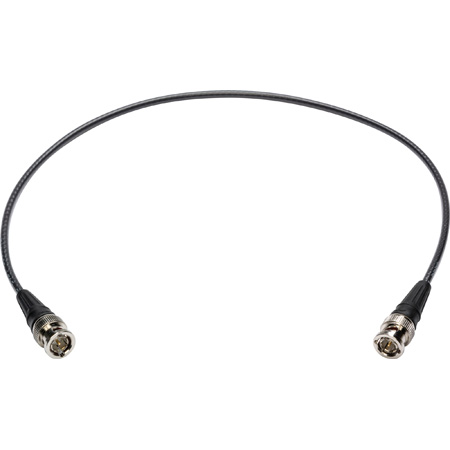

Laird 4855R-B-B Mini-RG59 12G-SDI/4K UHD Single Link BNC Cable

Get larger image of Laird 4855R-B-B Mini-RG59 12G-SDI/4K UHD Single Link BNC Cable


Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG59 BNC cables are designed to handle 12GHz 4K UHD signals up to 117 feet (3G-SDI up to 310 Feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4855R 4K Ultra-High-Definition Mini-RG59 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855 Series is the 12G-SDI equivalent of Belden's famous 1855 cable. It features a silver plated copper center conductor and a low profile diameter of less than 1/8" making it the ideal choice for patch bays and OB trucks. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 117 Feet for 12G-SDI even though Belden may show this distance as 149 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Designed for UHD and 4K Video Transport 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • Single Link BNC Simplifies Installations
  • Flexible Cable Suitable for Studio or Field Applications
  • Optimized Transmission Distance for UHDTV
  • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
  • Quick/Disconnect with BNC Connectors
  • Meets SMPTE 424M, ST 2081-1 and ST2082-1 Standards

Specifications:

  • Belden 12G SDI Mini-RG59 Coax Cable with PVC Jacket
  • Belden Certified Max Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
  • Laird Certified Max Transmission Distance: 117 Feet for 12G/4K
  • 12G SDI Optimized Amphenol BNC Connectors Compatible with 12GSDI single link format devices
  • Nominal Impedance: 75Ω
  • Conductor: Silver Plated Copper
  • Insulation: Gas Injected Foam HDPE
  • Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
  • Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
  • Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft)
  • Nominal Inductance: .107 ΜH/ft
  • Nominal Capacitance Conductor to Shield: 16.3 pF/ft

    ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year

Download the 4855R-B-B Series Datasheet


  4855R-B-B-BE-003
Laird 4855R-B-B-BE-003 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 3 Foot - Blue
Weight: 0.1074 lbs.
Price:
$27.95
  4855R-B-B-BE-006
Laird 4855R-B-B-BE-006 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Blue
Weight: 0.1584 lbs.
Price:
$31.95
  4855R-B-B-BE-010
Laird 4855R-B-B-BE-010 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 10 Foot - Blue
Weight: 0.2264 lbs.
Price:
$34.49
  4855R-B-B-BE-015
Laird 4855R-B-B-BE-015 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 15 Foot - Blue
Weight: 0.3114 lbs.
Price:
$39.95
  4855R-B-B-BE-025
Laird 4855R-B-B-BE-025 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 25 Foot - Blue
Weight: 0.4814 lbs.
Price:
$50.95
  4855R-B-B-BE-035
Laird 4855R-B-B-BE-035 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 35 Foot - Blue
Weight: 0.6514 lbs.
Price:
$61.49
  4855R-B-B-BE-050
Laird 4855R-B-B-BE-050 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 50 Foot - Blue
Weight: 0.9064 lbs.
Price:
$78.49
  4855R-B-B-BE-075
Laird 4855R-B-B-BE-075 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 75 Foot - Blue
Weight: 1.3314 lbs.
Price:
$105.49
  4855R-B-B-BE-100
Laird 4855R-B-B-BE-100 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 100 Foot - Blue
Weight: 1.7564 lbs.
Price:
$127.95
  4855R-B-B-BE-125
Laird 4855R-B-B-BE-125 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 125 Foot - Blue
Weight: 2.1814 lbs.
Price:
$153.95
  4855R-B-B-BE-150
Laird 4855R-B-B-BE-150 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 150 Foot - Blue
Weight: 2.6064 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$180.95
  4855R-B-B-BK-003
Laird 4855R-B-B-BK-003 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 3 Foot - Black
Select Colors:
Weight: 0.1074 lbs.
Price:
$27.95
  4855R-B-B-BK-006
Laird 4855R-B-B-BK-006 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Black
Select Colors:
Weight: 0.1584 lbs.
Price:
$31.95
  4855R-B-B-BK-010
Laird 4855R-B-B-BK-010 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 10 Foot - Black
Select Colors:
Weight: 0.2264 lbs.
Price:
$34.95
  4855R-B-B-BK-015
Laird 4855R-B-B-BK-015 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 15 Foot - Black
Select Colors:
Weight: 0.3114 lbs.
Price:
$40.95
  4855R-B-B-BK-025
Laird 4855R-B-B-BK-025 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 25 Foot - Black
Select Colors:
Weight: 0.4814 lbs.
Price:
$52.49
  4855R-B-B-BK-035
Laird 4855R-B-B-BK-035 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 35 Foot - Black
Select Colors:
Weight: 0.6514 lbs.
Price:
$64.49
  4855R-B-B-BK-050
Laird 4855R-B-B-BK-050 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 50 Foot - Black
Select Colors:
Weight: 0.9064 lbs.
Price:
$81.49
  4855R-B-B-BK-075
Laird 4855R-B-B-BK-075 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 75 Foot - Black
Select Colors:
Weight: 1.3314 lbs.
Price:
$109.49
  4855R-B-B-BK-100
Laird 4855R-B-B-BK-100 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 100 Foot - Black
Select Colors:
Weight: 1.7564 lbs.
Price:
$133.49
  4855R-B-B-BK-125
Laird 4855R-B-B-BK-125 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 125 Foot - Black
Select Colors:
Weight: 2.1814 lbs.
Price:
$160.49
  4855R-B-B-BK-150
Laird 4855R-B-B-BK-150 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 150 Foot - Black
Select Colors:
Weight: 2.6064 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$187.95
  4855R-B-B-GN-003
Laird 4855R-B-B-GN-003 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 3 Foot - Green
Weight: 0.1074 lbs.
Price:
$23.49
  4855R-B-B-GN-006
Laird 4855R-B-B-GN-006 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Green
Weight: 0.1584 lbs.
Price:
$28.49
  4855R-B-B-GN-010
Laird 4855R-B-B-GN-010 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 10 Foot - Green
Weight: 0.2264 lbs.
Price:
$34.49
  4855R-B-B-GN-015
Laird 4855R-B-B-GN-015 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 15 Foot - Green
Weight: 0.3114 lbs.
Price:
$42.49
  4855R-B-B-GN-025
Laird 4855R-B-B-GN-025 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 25 Foot - Green
Weight: 0.4814 lbs.
Price:
$57.95
  4855R-B-B-GN-035
Laird 4855R-B-B-GN-035 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 35 Foot - Green
Weight: 0.6514 lbs.
Price:
$74.49
  4855R-B-B-GN-050
Laird 4855R-B-B-GN-050 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 50 Foot - Green
Weight: 0.9064 lbs.
Price:
$96.49
  4855R-B-B-GN-075
Laird 4855R-B-B-GN-075 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 75 Foot - Green
Weight: 1.3314 lbs.
Price:
$136.49
  4855R-B-B-GN-100
Laird 4855R-B-B-GN-100 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 100 Foot - Green
Weight: 1.7564 lbs.
Price:
$172.49
  4855R-B-B-GN-125
Laird 4855R-B-B-GN-125 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 125 Foot - Green
Weight: 2.1814 lbs.
Price:
$211.49
  4855R-B-B-GN-150
Laird 4855R-B-B-GN-150 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 150 Foot - Green
Weight: 2.6064 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$244.95
  4855R-B-B-OE-003
Laird 4855R-B-B-OE-003 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 3 Foot - Orange
Weight: 0.1074 lbs.
Price:
$27.95
  4855R-B-B-OE-006
Laird 4855R-B-B-OE-006 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Orange
Weight: 0.1584 lbs.
Price:
$31.95
  4855R-B-B-OE-010
Laird 4855R-B-B-OE-010 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 10 Foot - Orange
Weight: 0.2264 lbs.
Price:
$34.95
  4855R-B-B-OE-015
Laird 4855R-B-B-OE-015 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 15 Foot - Orange
Weight: 0.3114 lbs.
Price:
$40.95
  4855R-B-B-OE-025
Laird 4855R-B-B-OE-025 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 25 Foot - Orange
Weight: 0.4814 lbs.
Price:
$51.49
  4855R-B-B-OE-035
Laird 4855R-B-B-OE-035 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 35 Foot - Orange
Weight: 0.6514 lbs.
Price:
$62.95
  4855R-B-B-OE-050
Laird 4855R-B-B-OE-050 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 50 Foot - Orange
Weight: 0.9064 lbs.
Price:
$80.95
  4855R-B-B-OE-075
Laird 4855R-B-B-OE-075 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 75 Foot - Orange
Weight: 1.3314 lbs.
Price:
$108.95
  4855R-B-B-OE-100
Laird 4855R-B-B-OE-100 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 100 Foot - Orange
Weight: 1.7564 lbs.
Price:
$131.95
  4855R-B-B-OE-125
Laird 4855R-B-B-OE-125 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 125 Foot - Orange
Weight: 2.1814 lbs.
Price:
$159.49
  4855R-B-B-OE-150
Laird 4855R-B-B-OE-150 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 150 Foot - Orange
Weight: 2.6064 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$186.95
  4855R-B-B-RD-003
Laird 4855R-B-B-RD-003 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 3 Foot - Red
Weight: 0.1074 lbs.
Price:
$28.49
  4855R-B-B-RD-006
Laird 4855R-B-B-RD-006 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Red
Weight: 0.1584 lbs.
Price:
$32.49
  4855R-B-B-RD-010
Laird 4855R-B-B-RD-010 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 10 Foot - Red
Weight: 0.2264 lbs.
Price:
$35.95
  4855R-B-B-RD-015
Laird 4855R-B-B-RD-015 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 15 Foot - Red
Weight: 0.3114 lbs.
Price:
$42.49
  4855R-B-B-RD-025
Laird 4855R-B-B-RD-025 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 25 Foot - Red
Weight: 0.4814 lbs.
Price:
$54.95
  4855R-B-B-RD-035
Laird 4855R-B-B-RD-035 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 35 Foot - Red
Weight: 0.6514 lbs.
Price:
$66.95
  4855R-B-B-RD-050
Laird 4855R-B-B-RD-050 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 50 Foot - Red
Weight: 0.9064 lbs.
Price:
$84.95
  4855R-B-B-RD-075
Laird 4855R-B-B-RD-075 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 75 Foot - Red
Weight: 1.3314 lbs.
Price:
$116.49
  4855R-B-B-RD-100
Laird 4855R-B-B-RD-100 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 100 Foot - Red
Weight: 1.7564 lbs.
Price:
$141.95
  4855R-B-B-RD-125
Laird 4855R-B-B-RD-125 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 125 Foot - Red
Weight: 2.1814 lbs.
Price:
$171.49
  4855R-B-B-RD-150
Laird 4855R-B-B-RD-150 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 150 Foot - Red
Weight: 2.6064 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$200.95
  4855R-B-B-VT-003
Laird 4855R-B-B-VT-003 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 3 Foot - Violet
Weight: 0.1074 lbs.
Price:
$27.95
  4855R-B-B-VT-006
Laird 4855R-B-B-VT-006 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Violet
Weight: 0.1584 lbs.
Price:
$31.95
  4855R-B-B-VT-010
Laird 4855R-B-B-VT-010 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 10 Foot - Violet
Weight: 0.2264 lbs.
Price:
$34.95
  4855R-B-B-VT-015
Laird 4855R-B-B-VT-015 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 15 Foot - Violet
Weight: 0.3114 lbs.
Price:
$40.95
  4855R-B-B-VT-025
Laird 4855R-B-B-VT-025 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 25 Foot - Violet
Weight: 0.4814 lbs.
Price:
$51.49
  4855R-B-B-VT-035
Laird 4855R-B-B-VT-035 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 35 Foot - Violet
Weight: 0.6514 lbs.
Price:
$62.95
  4855R-B-B-VT-050
Laird 4855R-B-B-VT-050 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 50 Foot - Violet
Weight: 0.9064 lbs.
Price:
$79.95
  4855R-B-B-VT-075
Laird 4855R-B-B-VT-075 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 75 Foot - Violet
Weight: 1.3314 lbs.
Price:
$109.95
  4855R-B-B-VT-100
Laird 4855R-B-B-VT-100 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 100 Foot - Violet
Weight: 1.7564 lbs.
Price:
$141.49
  4855R-B-B-VT-125
Laird 4855R-B-B-VT-125 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 125 Foot - Violet
Weight: 2.1814 lbs.
Price:
$170.49
  4855R-B-B-VT-150
Laird 4855R-B-B-VT-150 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 150 Foot - Violet
Weight: 2.6064 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$201.95
  4855R-B-B-YW-003
Laird 4855R-B-B-YW-003 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 3 Foot - Yellow
Weight: 0.1074 lbs.
Price:
$27.95
  4855R-B-B-YW-006
Laird 4855R-B-B-YW-006 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 6 Foot - Yellow
Weight: 0.1584 lbs.
Price:
$31.95
  4855R-B-B-YW-010
Laird 4855R-B-B-YW-010 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 10 Foot - Yellow
Weight: 0.2264 lbs.
Price:
$34.95
  4855R-B-B-YW-015
Laird 4855R-B-B-YW-015 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 15 Foot - Yellow
Weight: 0.3114 lbs.
Price:
$40.95
  4855R-B-B-YW-025
Laird 4855R-B-B-YW-025 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 25 Foot - Yellow
Weight: 0.4814 lbs.
Price:
$51.49
  4855R-B-B-YW-035
Laird 4855R-B-B-YW-035 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 35 Foot - Yellow
Weight: 0.6514 lbs.
Price:
$62.95
  4855R-B-B-YW-050
Laird 4855R-B-B-YW-050 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 50 Foot - Yellow
Weight: 0.9064 lbs.
Price:
$80.95
  4855R-B-B-YW-075
Laird 4855R-B-B-YW-075 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 75 Foot - Yellow
Weight: 1.3314 lbs.
Price:
$108.95
  4855R-B-B-YW-100
Laird 4855R-B-B-YW-100 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 100 Foot - Yellow
Weight: 1.7564 lbs.
Price:
$131.95
  4855R-B-B-YW-125
Laird 4855R-B-B-YW-125 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 125 Foot - Yellow
Weight: 2.1814 lbs.
Price:
$159.49
  4855R-B-B-YW-150
Laird 4855R-B-B-YW-150 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 150 Foot - Yellow
Weight: 2.6064 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$186.95



Related Products: Cables
