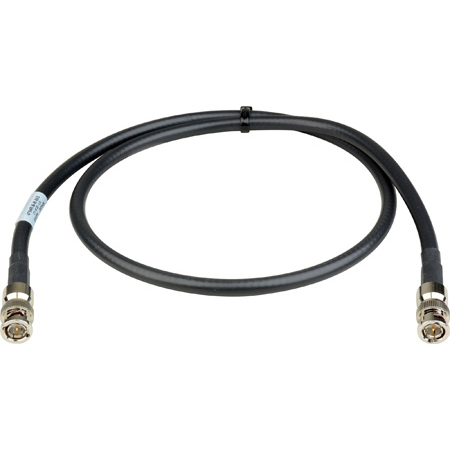

Laird 4794R-B-B-003 12G-SDI/4K UHD Single Link BNC Cable - 3 Foot Black

Get larger image of Laird 4794R-B-B-003 12G-SDI/4K UHD Single Link BNC Cable - 3 Foot Black


Just when the broadcast industry thought long distance 12G-SDI over coax would never be possible, Laird and Belden have teamed up to deliver once again. Laird introduces the gold standard next-gen BNC cable designed to handle long distance 12GHz 4K UHD signals. The critical missing link between your switchers, cameras and other 4K video gear is found with these hand crafted Belden cables featuring 4794R coaxial cable. Sending 12G-SDI over 300 foot distances is easily achieved making these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! These Belden 4794R BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 225 Feet for 12G-SDI even though Belden may show this distance as 321 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • 12GHz, 4K UHD Signal Transmission
  • Durable 16AWG, Precision Coax Cable Superior Pull Strength for Secure Connections
  • Maximize Broadcast Signal Integrity

Specifications:

  • Belden Precision Coax Cable
  • Belden Certified Max Transmission Distance: 321 Feet for 12G/4K
  • Laird Certified Max Transmission Distance: 225 Feet for 12G/4K
  • Meets: SMPTE ST 259, ST 292, ST 424, ST 425, ST 2081-1, ST 2082-1 Standards
  • Low-Loss Serial Digital 16AWG Cable with PVC Jacket
  • Gas-injected Foamed HD Polyethylene Insulation
  • Silver-plated Copper Conductor
  • Tinned Copper Braid Shield
  • Impedance: 75Ω
  • Transmission Distance: 12G signals up to 321 feet, 6G up to 471 feet, and 3G up to 686 feet
  • Amphenol Connectors
  • Meet SMPTE Standards for 12G-SDI Bayonet Lock
  • Durability: 500 Cycles
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year

Download the 4794R-B-B Series Datasheet


  4794R-B-B-003
Laird 4794R-B-B-003 12G-SDI/4K UHD Single Link BNC Cable - 3 Foot Black
Weight: 0.2592 lbs.
Price:
$27.49
  4794R-B-B-006
Laird 4794R-B-B-006 12G-SDI/4K UHD Single Link BNC Cable - 6 Foot Black
Weight: 0.4392 lbs.
Price:
$36.95
  4794R-B-B-010
Laird 4794R-B-B-010 12G-SDI/4K UHD Single Link BNC Cable - 10 Foot Black
Weight: 0.6792 lbs.
Price:
$48.95
  4794R-B-B-015
Laird 4794R-B-B-015 12G-SDI/4K UHD Single Link BNC Cable - 15 Foot Black
Weight: 0.9792 lbs.
Price:
$64.49
  4794R-B-B-025
Laird 4794R-B-B-025 12G-SDI/4K UHD Single Link BNC Cable - 25 Foot Black
Weight: 1.5792 lbs.
Price:
$93.49
  4794R-B-B-035
Laird 4794R-B-B-035 12G-SDI/4K UHD Single Link BNC Cable - 35 Foot Black
Weight: 2.1792 lbs.
Price:
$122.95
  4794R-B-B-050
Laird 4794R-B-B-050 12G-SDI/4K UHD Single Link BNC Cable - 50 Foot Black
Weight: 3.0792 lbs.
Price:
$168.95
  4794R-B-B-075
Laird 4794R-B-B-075 12G-SDI/4K UHD Single Link BNC Cable - 75 Foot Black
Weight: 4.5792 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$243.95
  4794R-B-B-100
Laird 4794R-B-B-100 12G-SDI/4K UHD Single Link BNC Cable - 100 Foot Black
Weight: 6.0792 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$319.49
  4794R-B-B-150
Laird 4794R-B-B-150 12G-SDI/4K UHD Single Link BNC Cable - 150 Foot Black
Weight: 9.0792 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$461.95
