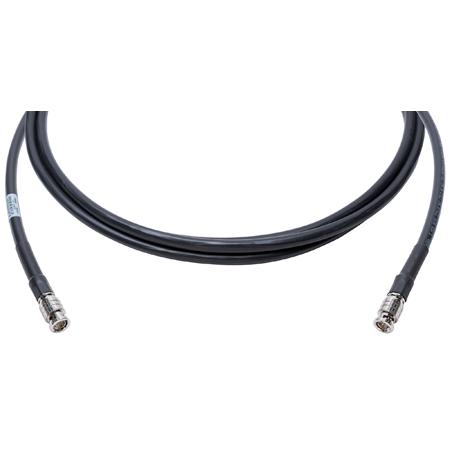

Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 3 Foot

Get larger image of Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 3 Foot


The dawn of tri-shield 12G coax has arrived with the new Laird 4713R-B-B series BNC cables. If you need a long distance, wide-band riser rated cable for 4K Single-link 12G, 4K D-Cinema or 8K Quad-link look no further. RG11 coax offers less attenuation or signal at longer distances compared to all other coax so it has long been the standard used in stadium and large venues installs for sports video and live event applications. These heavy duty Laird cables are assembled with 14AWG Belden 4713 coax featuring a silver-plated copper conductor and tri-shield to deliver the best signal transmission distance. When the action calls for a heavy duty, long distance 12G coax run, the Laird 4713R-B-B series is your best choice!

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 250 Feet for 12G-SDI even though Belden may show this distance as 383 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Designed for UHD and 4K Video Transport
  • 75Ω SDI Coax RG-11 Cable, 14 AWG Solid Silvered Copper Conductor Cable
  • PVC Jacket Terminated with 12G 75Ω BNC Connectors
  • Flame Retardant

Specifications:

  • Belden 4731R Cable
  • Belden Certified Max Transmission Distance: 383 Feet for 12G/4K
  • Laird Certified Max Transmission Distance: 250 Feet for 12G/4K
  • Operating Temperature Range: -20°C To +75°C
  • Bulk Cable Weight: 87 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 145 lbs.
  • Min. Bend Radius/Minor Axis: 4.0 in.
  • Nom. Characteristic Impedance: 75Ω
  • Nom. Inductance (µH/ft): 0.3 uH/ft
  • Nom. Capacitance Conductor to Shield (pF/ft): 15.6
  • Belden 4731RBUHD3 Connector
  • Nominal Characteristic Impedance: 75Ω
  • Footprint/Type: Coax
  • Termination Type: Crimp
  • RG Type: 11/U
  • Type Environmental Space: Indoor SMPTE 2082-1
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year

Download the 4731R-B-B Series Datasheet


  4731R-B-B-003
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 3 Foot
Weight: 0.3822 lbs.
Price:
$40.95
  4731R-B-B-006
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 6 Foot
Weight: 0.6432 lbs.
Price:
$53.95
  4731R-B-B-010
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 10 Foot
Weight: 0.9912 lbs.
Price:
$71.49
  4731R-B-B-015
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 15 Foot
Weight: 1.4262 lbs.
Price:
$92.95
  4731R-B-B-025
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 25 Foot
Weight: 2.2962 lbs.
Price:
$136.49
  4731R-B-B-050
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 50 Foot
Weight: 4.4712 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$244.95
  4731R-B-B-075
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 75 Foot
Weight: 6.6462 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$353.95
  4731R-B-B-100
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 100 Foot
Weight: 8.8212 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$462.49
  4731R-B-B-125
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 125 Foot
Weight: 10.9962 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$570.95
  4731R-B-B-150
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 150 Foot
Weight: 13.1712 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$679.49
  4731R-B-B-200
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 200 Foot
Weight: 17.5212 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$896.95
  4731R-B-B-250
Laird 12G-SDI/4K UHD Belden 4731R Male to Male BNC Cable - 250 Foot
Weight: 21.8712 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$1,113.95
