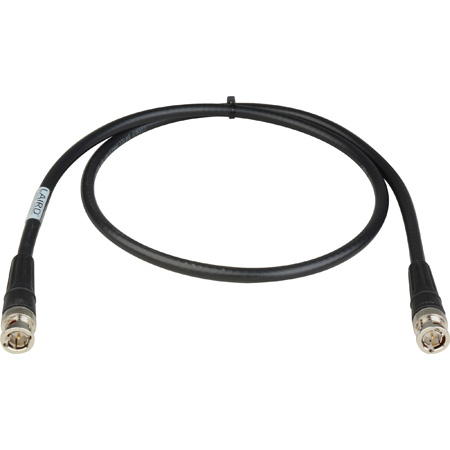

Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen RG6 BNC cables are designed to handle 12GHz 4K UHD signals over 190 feet (3G-SDI up to 540 feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted assemblies featuring 4694R 4K Ultra-High-Definition RG6 coaxial cable for 12G-SDI, these cables the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4694R Series is the 12G-SDI equivalent of Belden's famous 1694A cable. It features a silver plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 190 Feet for 12G-SDI even though Belden may show this distance as 257 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

• Designed for 12GHz, 4K UHD Signal Transmission
• Durable 18AWG, Precision Coax Cable
• High Quality Amphenol Connectors
• Maximize Broadcast Signal Integrity
• Meets: SMPTE ST 2082-1 (12GB/s UHDTV), ST-2801-1 (6GB/s UHDTV), and ST 425.4 (3GB/s UHDTV)

Specifications:

• Belden 12G SDI Coax Cable with PVC Jacket
• Belden Certified Max Transmission Distance: 12G signals up to 258 feet, 6G up to 375 feet, and 3G up to 540 feet
• Laird Certified Max Transmission Distance: 190 Feet for 12G/4K
• 4K UHD 18AWG Coax RG 6/U
• Cable Insulation: Gas-injected Foam HDPE
• Conductor: Silver-plated Copper
• Outer Shield: Duofoil Bonded to the Core + Tinned Copper Braid Shield
• Conductor DC Resistance: 20.9984 [email protected]°C(Ohm/1000ft)
• Outer Shield Resistance: 9.187 [email protected]°C(Ohm/1000ft)
• Nominal Inductance: 0.347786 ΜH/ft
• Nominal Impedance: 75Ω
• Nominal Capacitance Conductor to Shield: 52.168pF/m
• Amphenol Connectors
• Meet SMPTE Standards for 12G-SDI Bayonet Lock
• Durability: 500 Cycles
• ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

• 1 Year
