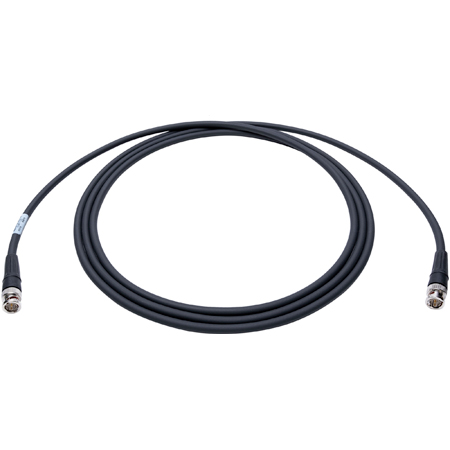

Laird 4694F-B-B-003 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 3 Foot

Get larger image of Laird 4694F-B-B-003 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 3 Foot


Laird BNC cables break the 12GHz 4K UHD coax barrier! These next-gen flexible RG6 BNC cables are designed to handle 12GHz 4K UHD signals with ease and provide the critical link between your switchers, cameras and other 4K video gear. Handcrafted and featuring Belden 4694F 12 GHz Flexible Coax Cable for 12G-SDI and Amphenol 12G BNC Connectors, these assemblies are the simple choice when setting up your studio backbone and infrastructure. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4694F Series is the flexible 12G-SDI equivalent of Belden's famous 4694R cable. It features a silver-plated copper center conductor and is the ideal choice for installations in studios, stadiums and live event venues. Custom lengths are always available.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 125 Feet for 12G-SDI even though Belden may show this distance as 184 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • Designed for 12GHz, 4K UHD Signal Transmission
  • Durable 18AWG, Precision Flexible Coax Cable
  • High Quality Amphenol Connectors
  • Maximize Broadcast Signal Integrity
  • Suitable Applications: SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P

Specifications:

  • Belden 4694F 12 GHz Flexible Coax Cable
  • Belden Certified Max Transmission Distance: 184 Feet for 12G/4K
  • Laird Certified Max Transmission Distance: 125 Feet for 12G/4K
  • Environmental Space: Indoor
  • Conductor Size: 18 AWG
  • Operating Temp Range: -30°C To 75°C
  • Max Recommended Pulling Tension: 80 lbs
  • Min Bend Radius/Minor Axis: 2.75 in
  • RG Type: 6/U Type
  • Amphenol 12G BNC Connector
  • Impedance: 75Ω
  • Contact Finish: Gold
  • Contact Material: Brass
  • Max Frequency (GHz): 12
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year



  4694F-B-B-003
Laird 4694F-B-B-003 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 3 Foot
Weight: 0.1722 lbs.
Price:
$32.95
  4694F-B-B-006
Laird 4694F-B-B-006 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 6 Foot
Weight: 0.2922 lbs.
Price:
$40.95
  4694F-B-B-010
Laird 4694F-B-B-010 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 10 Foot
Weight: 0.4322 lbs.
Price:
$42.95
  4694F-B-B-015
Laird 4694F-B-B-015 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 15 Foot
Weight: 0.6522 lbs.
Price:
$64.49
  4694F-B-B-025
Laird 4694F-B-B-025 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 25 Foot
Weight: 1.0522 lbs.
Price:
$88.49
  4694F-B-B-050
Laird 4694F-B-B-050 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 50 Foot
Weight: 2.0522 lbs.
Price:
$152.49
  4694F-B-B-075
Laird 4694F-B-B-075 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 75 Foot
Weight: 3.0522 lbs.
Price:
$216.95
  4694F-B-B-100
Laird 4694F-B-B-100 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 100 Foot
Weight: 4.0522 lbs.
Price:
$274.95
  4694F-B-B-125
Laird 4694F-B-B-125 RG6 12G-SDI/4K UHD Single Link BNC Cable - Black - 125 Foot
Weight: 5.0522 lbs.
Price:
$337.49
