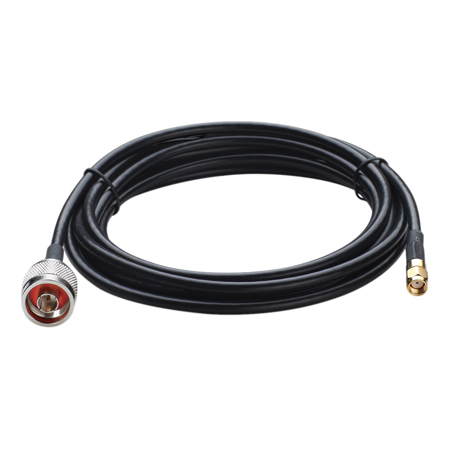

RP-SMA is the most commonly used connector for wireless routers. Relocate your current Wi-Fi antenna to meet aesthetic needs and increase the performance of your wireless LAN network. This ultra low loss cable allows longer runs with no signal degradation. Relocating your Wi-Fi antenna to a more central location and out of an equipment closet is a simple and cost-effective solution for propagation problems.
Features:
- Utilizes Belden-7807A cable and High-Quality Amphenol RF Connectors
- Indoor/outdoor rated
- Designed for Low Loss (attenuation), Low Passive intermodulation (PIM), and Low Voltage Standing Wave Ratio (VSWR)
- Excellent performance across long distances
Specifications:
- RG Type: 58
- Conductor AWG: 17
- Conductor Stranding: Solid
- Conductor Nom. Diameter: 0.044 in (1.117mm)
- Conductor Material: Bare Copper-BC
- Overall Cable Diameter: 0.195 in (4.95 mm)
- Insulation Material: Polyethylene - PE - (Foam)
- Insulation Nom. Diameter: 0.116 in (2.95 mm)
- Outer Shield Layer 1 Type: Tape
- Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
- Outer Shield Layer 2 Type: Braid
- Outer Shield Layer 2 Material/Coverage: Tinned Copper (TC)/95%
- Outer Jacket Material: Polyethylene - PE
- Outer Jacket Nom. Diameter: 0.195 in (4.95 mm)
- VSWR: 5 - 6000 MHz - 1.25:1
- Nom. Conductor DCR: 5.4Ω/1000ft
- Nom. Outer Shield DCR: 3.6Ω/1000ft (12Ω/km)
- Nom. Capacitance Cond-to-Shield: 23.5 pF/ft (77.1 pF/m)
- Nom. Characteristic Impedance: 50Ω
- Nom. Velocity of Prop: 85%
- Temperature: -40°F to 176°F (-40°C to +80°C)
- Flexing Bend Radius: 1.9 in (48 mm)
- Max Pull Tension: 25.4lbs (11.5 kg)
- Weight: 0.026lbs/ft
Amphenol Connectors: - Body Finish:
-RP Connector: Gold
-N-Type: White Bronze - Body Material: Brass
- Contact Finish: Gold
- Contact Material: Brass
- Frequency (Max GHz): 11
- Coupling Mechanism: Threaded
- Impedance (Ohms): 50Ω
