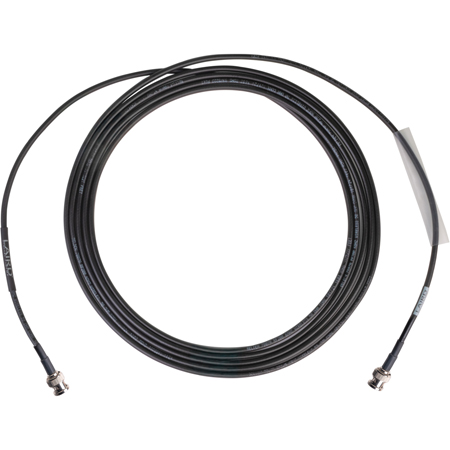

Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 3 Foot

Get larger image of Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 3 Foot


Built on the foundation of a low-loss RG8 coaxial cable, the Laird LMR200 Type series antenna cables are specially engineered for low signal loss, making them ideal for long-distance runs in demanding outdoor applications. These cables are widely used in various high-performance environments, such as point-to-point and point-to-multipoint distributed antenna systems or as the essential link for enhancing connectivity across large venues, stadiums, and arenas. They are also valuable in wireless microphone distribution setups, cellular transmitters, broadband systems, satellite communications, marine satellite systems, Wi-Fi antenna networks, and mobile military communications, where signal integrity and durability are crucial.

The 200 series cables offer a smaller diameter and better flexibility in tighter installs when compared to the Laird 400 series cables. Each cable in the Laird 200 series is handcrafted by Laird's expert technicians, who use high-grade Belden 7807A coaxial cable. This cable features a robust Tri-Laminate (Alum+Poly+Alum) design paired with a dual outer shield made from tinned copper, ensuring maximum signal fidelity and resistance to environmental interference. Every cable is terminated with broadcast-grade, 50-ohm BNC connectors from Amphenol, guaranteeing a secure connection and high performance. This combination of premium materials and expert craftsmanship from Belden, Amphenol, and Laird provides an unparalleled solution that sets a high standard in the market for reliability and quality.

Features:

  • Utilizes Belden-7807A cable and High-Quality Amphenol RF BNC Connectors
  • Indoor/outdoor rated
  • Designed for Low Loss (attenuation), Low Passive intermodulation (PIM), and Low Voltage Standing Wave Ratio (VSWR)
  • Excellent performance across long distances

Specifications:

  • RG Type: 58
  • Conductor AWG: 17
  • Conductor Stranding: Solid
  • Conductor Nom. Diameter: 0.044in (1.117mm)
  • Conductor Material: Bare Copper-BC
  • Overall Cable Diameter: 0.195in (4.95mm)
  • Insulation Material: Polyethylene - PE - (Foam)
  • Insulation Nom. Diameter: 0.116in (2.95mm)
  • Outer Shield Layer 1 Type: Tape
  • Outer Shield Layer 1 Material/Coverage: Tri-Laminate (Alum+Poly+Alum)/100%
  • Outer Shield Layer 2 Type: Braid
  • Outer Shield Layer 2 Material/Coverage: Tinned Copper (TC)/95%
  • Outer Jacket Material: Polyethylene - PE
  • Outer Jacket Nom. Diameter: 0.195in (4.95mm)
  • VSWR: 5 - 6000 MHz - 1.25:1
  • Nom. Conductor DCR: 5.4 Ohm/1000ft
  • Nom. Outer Shield DCR: 3.6 Ohm/1000ft (12 Ohm/km)
  • Nom. Capacitance Cond-to-Shield: 23.5 pF/ft (77.1 pF/m)
  • Nom. Characteristic Impedance: 50Ω
  • Nom. Velocity of Prop: 85%
  • Temperature: -40°F to 176°F (-40°C to +80°C)
  • Flexing Bend Radius: 1.9in (48mm)
  • Max Pull Tension: 25.4lbs (11.5kg)
  • Weight: 0.026lbs/ft

    Amphenol BNC Connectors:
  • Body Finish: Nickel
  • Body Material: Brass
  • Contact Finish: Gold
  • Contact Material: Brass
  • Coupling Mechanism: Bayonet
  • Frequency (Max GHz): 4GHz
  • Gender: Plug
  • Impedance: 50Ω
  • Insulator Material: PTFE
  • Return Loss: DC - 4 GHz - 1.3 (-18 dB) Max
  • Insertion Loss: 0.2 dB Max @ 3 GHz
  • Insulation Resistance: 5000 MΩ Min
  • Center Contact Resistance: 1.5 mΩ Min
  • Outer Contact Resistance: 0.2 mΩ Min
  • Mating Cycles: 500

Warranty:

  • 1 Year

Download the Datasheet


  200-B-B-003
Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 3 Foot
Weight: 0.4444 lbs.
Price:
$27.95
  200-B-B-006
Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 6 Foot
Weight: 0.4444 lbs.
Price:
$35.95
  200-B-B-010
Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 10 Foot
Weight: 0.4444 lbs.
Price:
$45.95
  200-B-B-015
Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 15 Foot
Weight: 0.449 lbs.
Price:
$58.95
  200-B-B-025
Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 25 Foot
Weight: 0.717 lbs.
Price:
$84.49
  200-B-B-050
Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 50 Foot
Weight: 1.387 lbs.
Price:
$147.95
  200-B-B-075
Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 75 Foot
Weight: 2.057 lbs.
Price:
$211.95
  200-B-B-100
Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7807A RG58 BNC Male Cable - 100 Foot
Weight: 2.727 lbs.
Price:
$275.49
