Laird 1303E-TOP-006 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 6 Foot

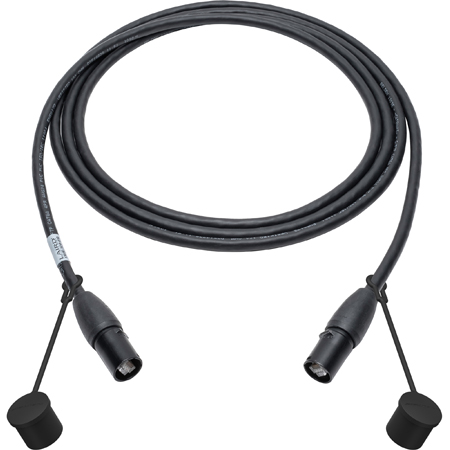

Get larger image of Laird 1303E-TOP-006 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 6 Foot


Suitable for multiple AV over IP applications and perfect as a field-deploy CAT6a cable, the Laird 1303E-TOP is a super rugged solution for outside broadcast, live event and stage application use.

This cable is hand crafted in the USA utilizing Belden 1303E Ethernet Snake Cable and is terminated with Neutrik etherCON Top connectors. These CAT6A cables are perfect for 10GBase - T(10 Gigabit Ethernet), 1000 Base - T (Gigabit Ethernet), 100 Base - T, 10 Base � T usage. They are also perfect for SMPTE-2110, AVB, Dante, CobraNEt, eSnake, Ethersound and Digital audio over Ethernet setups.

With the addition of the Neutrik etherCON Top connector, this cable employs an environmentally sealed connector specifically manufactured for heavy-duty and harsh environment applications typical of the demands required in entertainment equipment like PA systems, LED video walls, lighting rigs and video over IP extenders. These sealed connectors feature IP65 rating as well as certified outdoor protection to UL 50E like UV resistance.

Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features:

  • Withstands repeated pulling, flexing, bending, coiling, and crushing during stage and live sound events
  • Excellent Flexibility
  • Stranded (7x32) conductors and matte-finished jackets
  • Lockable & Outdoor Protected Neutrik etherCON TOP Connectors
  • Lanyard Style Rubber Dust Caps

    Applications
  • Field deployable CAT6a patch horizontal and building backbone cable
  • AVB
  • Dante
  • CobraNet
  • eSnake
  • Ethersound
  • Digital audio over Ethernet

Specifications:

  • Belden 1303E Cat6A Cable:
  • Conductor Element: Individual Shielded Pair
  • Conductor Size: 24 AWG
  • Conductor Stranding: 7x32
  • Conductor Material: Bare Copper
  • Conductor Number of Pairs: 4
  • Conductor Number of Element: 8
  • Insulation Material: PE - Polyethylene (Foam)
  • Voltage Rating: 72 V DC
  • Operating Temperature: -30°C to +60°C
  • Storage Temp: -30°C To +60°C
  • Max. Pull Tension: 75 N (17 lbf)
  • TIA/EIA Compliance: ANSI/TIA 568.2-D
  • ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-6
  • CENELEC Compliance: EN 50173-1, Segregation class according EN50174-2 = c
  • Support for current and future Category 6A and 6 applications, such as: 10GBase-T(10 Gigabit Ethernet), 1000 Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM; Compatible connectors Belden R301601 000S1(T568A) and R301602 000S1(T568B)

    Neutrik etherCON RJ45 TOP Connectors
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: 1000 mating cycles

Warranty:

  • 1 Year

Download the 1303E-TOP Series Datasheet


  1303E-TOP-006
Laird 1303E-TOP-006 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 6 Foot
Weight: 0.5324 lbs.
Price:
$53.49
  1303E-TOP-010
Laird 1303E-TOP-010 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 10 Foot
Weight: 0.7552 lbs.
Price:
$62.95
  1303E-TOP-015
Laird 1303E-TOP-015 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 15 Foot
Weight: 1.0337 lbs.
Price:
$75.49
  1303E-TOP-025
Laird 1303E-TOP-025 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 25 Foot
Weight: 1.5907 lbs.
Price:
$97.95
  1303E-TOP-050
Laird 1303E-TOP-050 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 50 Foot
Weight: 2.9832 lbs.
Price:
$158.49
  1303E-TOP-075
Laird 1303E-TOP-075 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 75 Foot
Weight: 4.3757 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$218.49
  1303E-TOP-100
Laird 1303E-TOP-100 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 100 Foot
Weight: 5.7682 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$273.49
  1303E-TOP-125
Laird 1303E-TOP-125 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 125 Foot
Weight: 7.1607 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$332.49
  1303E-TOP-150
Laird 1303E-TOP-150 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 150 Foot
Weight: 8.5532 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$384.49
  1303E-TOP-200
Laird 1303E-TOP-200 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 200 Foot
Weight: 11.3382 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$500.49
  1303E-TOP-250
Laird 1303E-TOP-250 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 250 Foot
Weight: 14.1232 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$604.95
  1303E-TOP-300
Laird 1303E-TOP-300 Belden 1303E Field Deployable Cat6A Cable with etherCON TOP Connectors - 300 Foot
Weight: 16.9082 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$705.49
