Laird High Density HD-BNC Male to Standard BNC Female HD-SDI Cables

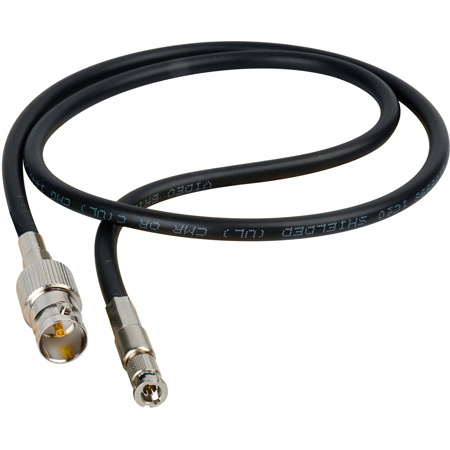

Get larger image of Laird High Density HD-BNC Male to Standard BNC Female HD-SDI Cables


The HD-BNC (aka Micro-BNC) is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS3440 Equalizer and GX3290 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless. One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle."

Features:

  • Belden 1505A RG59/20 SDI Coaxial Cable Amphenol Connectors

Warranty:

  • 1 Year

Download the Data Sheet (PDF)


  HDBNC1505-BF01
Laird Belden 1505A RG59 HD-BNC Male to BNC Female 6G-SDI Cable - 1 Foot
Weight: 0.1935 lbs.
Price:
$36.95
  HDBNC1505-BF05
Laird Belden 1505A RG59 HD-BNC Male to BNC Female 6G-SDI Cable - 5 Foot
Weight: 0.3004 lbs.
Price:
$39.49
  HDBNC1505-BF07
Laird Belden 1505A RG59 HD-BNC Male to BNC Female 6G-SDI Cable - 7 Foot
Weight: 0.361 lbs.
Price:
$40.95
  HDBNC1505-BF10
Laird Belden 1505A RG59 HD-BNC Male to BNC Female 6G-SDI Cable - 10 Foot
Weight: 0.4519 lbs.
Price:
$43.49
  HDBNC1505-BF15
Laird Belden 1505A RG59 HD-BNC Male to BNC Female 6G-SDI Cable - 15 Foot
Weight: 0.6034 lbs.
Price:
$47.95
  HDBNC1505-BF25
Laird Belden 1505A RG59 HD-BNC Male to BNC Female 6G-SDI Cable - 25 Foot
Weight: 0.9064 lbs.
Price:
$55.95
  HDBNC1505-BF50
Laird Belden 1505A RG59 HD-BNC Male to BNC Female 6G-SDI Cable - 50 Foot
Weight: 1.6639 lbs.
Price:
$76.49
  HDBNC1505-BF03
Laird Belden 1505A RG59 HD-BNC Male to BNC Female 6G-SDI Cable - 3 Foot
Weight: 0.2398 lbs.
Price:
$37.95
