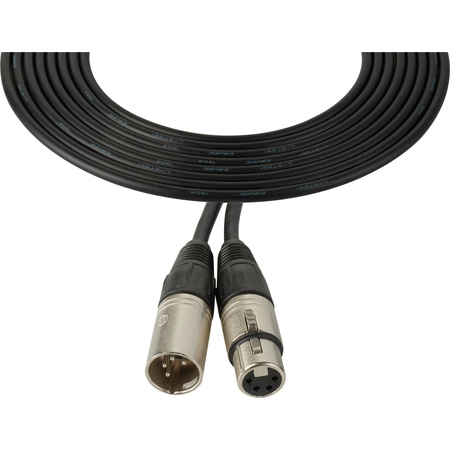

Reliability in power delivery is essential for professional video production, whether on set, in the studio, or out in the field. The Laird XLM4-XLF4 Series of power cables is engineered to ensure clean, stable D.C. power for equipment that utilizes Sony's 4-Pin XLR D.C. power pinout. These cables combine durability, flexibility, and superior shielding to reduce noise and maintain signal integrity in demanding broadcast and production environments.
Fitted with Neutrik 4-Pin XLR connectors, each cable ensures secure power transmission and long-lasting mechanical reliability. Neutrik's precision contact design and latch-locking mechanism prevent accidental disconnection, while providing lifecycle endurance exceeding 1,000 mating cycles.
Features:
- Wired According to Sony 4-Pin XLR D.C. Power Pinout
- Canare L-2T2S blocks EMI and RFI and reduces handling noise
- Highly flexible and durable PVC Jacket
- High-quality Neutrik 4-Pin XLR Connectors
Specifications:
Canare L-2T2S- Number of Conductors: 2
- Conductor Material: Annealed Copper
- Conductor AWG: 23
- Conductor O.D.: 0.02" (0.72mm)
- Insulation Material: Crosslinked Polyethylene
- Insulation Thickness: 0.01" (0.50mm)
- Insulation O.D.: 0.068" (1.72mm)
- Pair/Quad Strand Pitch: ≤0.79
- Filler Material: Cotton
- Overall Tape Material: Paper Tape
- Overall Tape Thickness: 0.001" (0.05mm)
- Shield Material/Coverage%: Tinned Annealed Copper/94%
- Sheath Type: PVC
- Sheath Thickness: 0.03" (1.0mm)
- Sheath O.D.: 0.24" (6.0mm)
- Rated Voltage: AC 60
- Conductor DCR (Ω/1000ft): ≤19.8
- Shield Conductor DCR (Ω/1000ft): ≤9.4
- Insulation Resistance between Conductors (MΩ·3000ft): ≥1000
- Tensile Strength (MPa): ≥11.0
Neutrik 4-Pin XLR Connector - Capacitance Between Conductors: ≤ 7 pF
- Contact Resistance: ≤ 3 mΩ
- Dielectric Strength: 1.5 kVdc
- Insulation Resistance: > 10 GΩ
- Rated Current per Contact: 10A
- Rated Voltage: < 50 V
- Insertion Force: ≤ 20 N
- Withdrawal Force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Locking Device: Latch lock
- Protection Class: IP40
