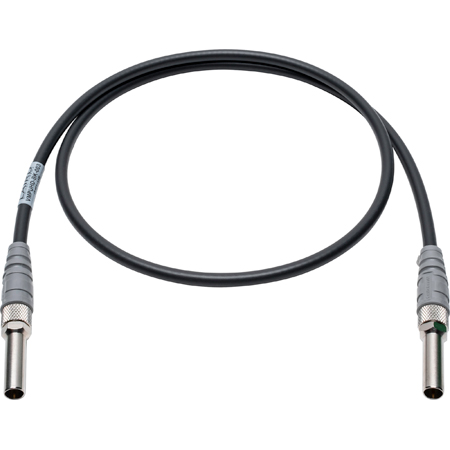

Laird VMPUHD-BK-010 12G-SDI 4K UHD Mid Size Video Patch Coax Cable - 10 Foot

Get larger image of Laird VMPUHD-BK-010 12G-SDI 4K UHD Mid Size Video Patch Coax Cable - 10 Foot


12GHz VMPUHD-Series mid-size video patch cables by Laird are designed to meet today's and future broadcast patching needs in video studios, sports production trucks and ENG vans. These cables meet standards for SMPTE 2082-1 and are capable of carrying 12G-SDI UHD video signals for 4K video formats. Cables utilize a flexible and lightweight Belden 4505R silver-plated copper RG59 cable along with Switchcraft UHD precision mid-size video plugs.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 150 Feet for 12G-SDI even though Belden may show this distance as 208 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

Features:

  • 12GHz, 4K UHD Signal Transmission
  • Durable Mid-Size 20AWG, Precision Coax Cable
  • Gray Boots Differentiate from 3GHz Cable
  • High Quality Switchcraft Connectors
  • Maximize Broadcast Signal Integrity
  • Meets: SMPTE ST 2082-1 (12GB/s UHDTV), ST-2801-1 (6GB/s UHDTV), and 424M (3GB/s HD-SDI 1080p)

Specifications:

  • Belden 12G-SDI Coax Cable with PVC Jacket
  • Belden Certified Max Transmission Distance: 12G Signals up to 208 feet, 6G up to 302 feet, and 3G up to 433 feet
  • Laird Certified Max Transmission Distance: 150 Feet for 12G/4K
  • 4K UHD 20AWG Coax Cable
  • Insulation: Gas-injected Foam HDPE
  • Conductor: Silver-plated Copper
  • Outer Shield: Duofoil Bonded to the Core + Tinned Copper Braid Shield
  • Conductor DC Resistance: 10.200 DCR@20°C(Ohm/1000ft)
  • Outer Shield Resistance: 3.400 DCR@20°C(Ohm/1000ft)
  • Nominal Inductance: 0.107 ΜH/ft
  • Nominal Impedance: 75Ω
  • Nominal Capacitance Conductor to Shield: 16.1 pF/ft
  • ** Laird certified lengths are defined as max transmission where signal integrity remains 100% functional without any CRC errors, your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues- however when CRC errors are present there could be drops in audio, video, meta and ancillary data. In most circumstances, video integrity remains intact at OEM distance **

Warranty:

  • 1 Year

Download the VMPUHD-BK Series Datasheet
