Product Categories>Cables>Power & Extension Cables

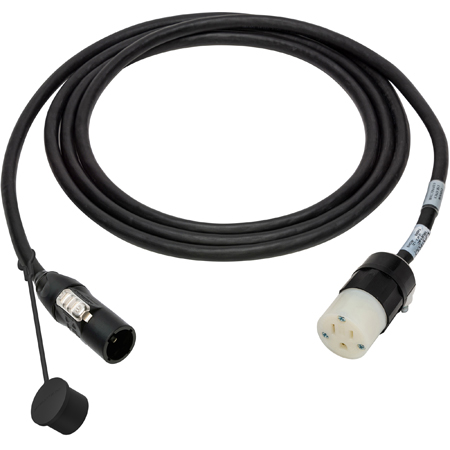

Laird TRUE1-ACOUT-003 Neutrik TRUE1 powerCON Male to NEMA 5-15R 15-Amp 3-Prong Receptacle Power OUT AC Cable - 3 Foot

Get larger image of Laird TRUE1-ACOUT-003 Neutrik TRUE1 powerCON Male to NEMA 5-15R 15-Amp 3-Prong Receptacle Power OUT AC Cable - 3 Foot


The Laird Locking TRUE1-ACOUT Power Out Cable assembly allows interconnection of electronic devices that utilize powerCON TRUE1 devices for live events, and motion picture and television production. The high quality UL recognized components ensure durability and long life. For indoor use only.

Features:

  • Neutrik powerCON TRUE1 Locking Connector
  • Lanyard Style Rubber Dust Cap
  • NEMA 5-15R AC Receptacle
  • Flexibility in Low Temperatures
  • Dust and Water Resistant According to IP65 Rating
  • Water and Oil Resistant
  • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance

Specifications:

  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
  • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
  • TPrene Jacket - Black
  • 3 conductor colors: Black, White and Green
    Leviton 5269-C AC Receptacle Cable End:
  • 15 Amp
  • 125V
  • NEMA 5-15R
    NAC3MX-W-TOP
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: 4 kVdc / 2.8 kVac
  • Insulation Resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: > 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
  • Temperature Range: -22 °F to 176 °F
  • Rating Europe: EN 60320-1: 16 A 250 V AC
  • Rating USA: UL 498: 20 A 250 V AC

Warranty:

  • 1 Year

Download the TRUE1-ACOUT Series Datasheet


  TRUE1-ACOUT-003
Laird TRUE1-ACOUT-003 Neutrik TRUE1 powerCON Male to NEMA 5-15R 15-Amp 3-Prong Receptacle Power OUT AC Cable - 3 Foot
Weight: 0.7791 lbs.
Price:
$73.95
  TRUE1-ACOUT-010
Laird TRUE1-ACOUT-010 Neutrik TRUE1 powerCON Male to NEMA 5-15R 15-Amp 3-Prong Receptacle Power OUT AC Cable - 10 Foot
Weight: 1.8291 lbs.
Price:
$90.49
  TRUE1-ACOUT-025
Laird TRUE1-ACOUT-025 Neutrik TRUE1 powerCON Male to NEMA 5-15R 15-Amp 3-Prong Receptacle Power OUT AC Cable - 25 Foot
Weight: 4.0791 lbs.
Price:
$124.95
  TRUE1-ACOUT-050
Laird TRUE1-ACOUT-050 Neutrik TRUE1 powerCON Male to NEMA 5-15R 15-Amp 3-Prong Receptacle Power OUT AC Cable - 50 Foot
Weight: 7.8291 lbs.
Price:
$183.49
  TRUE1-ACOUT-075
Laird TRUE1-ACOUT-075 Neutrik TRUE1 powerCON Male to NEMA 5-15R 15-Amp 3-Prong Receptacle Power OUT AC Cable - 75 Foot
Weight: 11.5791 lbs.
Price:
$241.49
  TRUE1-ACOUT-100
Laird TRUE1-ACOUT-100 Neutrik TRUE1 powerCON Male to NEMA 5-15R 15-Amp 3-Prong Receptacle Power OUT AC Cable - 100 Foot
Weight: 15.3291 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$299.49

Recommended Accessories

  SSPC-25
Laird SSPC-25 Stage Systems Heavy Duty 15-Amp 14/3 AC Power Extension Cord w/ Quad Box - 25 Foot
Weight: 7.5073 lbs.
Price:
$213.49
