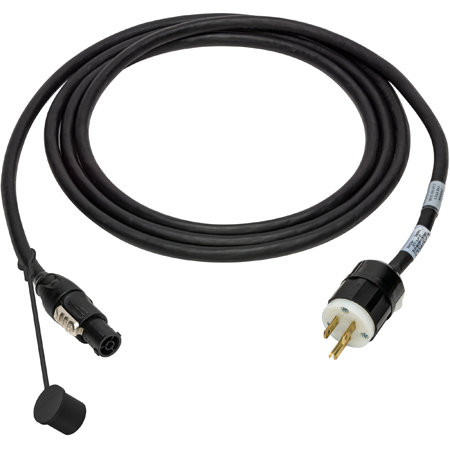

The Laird Locking TRUE1-ACIN Power In Cable assembly allows interconnection of electronic devices that utilize powerCON TRUE1 devices for live events, and motion picture and television production. The high quality UL recognized components ensure durability and long life. For indoor use only.
Features:
- Neutrik powerCON TRUE1 Locking Connectors
- Lanyard-style rubber dust caps
- NEMA 5-15P AC connector
- Rubber jacketed cable provides resistance to water and oil
Specifications:
PWR-12/3-TP- Conductor Material: Bare Copper Wire
- Number of Conductors x AWG: 3x12
- Conductor Insulation: Rubber (EPR)
- Outer Jacket Material: Rubber (CPE)
- Current Carrying Capacity: 25A
- Outer Diameter: 0.425" - 0.476"
- Nom. Voltage: AC U 300V
- Temperature:
- Flexing: -4°F - 194°F (-20°C - 90°C)
- Static: -40°F - 194°F (-40°C - 90°C) - Min Bend Radius:
- Flexing: 4.76"
- Static: 2.85" - Weight: 0.14lbs/ft
Leviton 5366C Plug: - Amperage: 20A
- Voltage: 125V AC
Neutrik Connector - Contact Resistance: ≤ 2mΩ
- Dielectric Strength: 4kVdc/2.8kVac
- Insulation Resistance: > 0.1GΩ (after damp heat test IEC 68-2-30)
- Number of Electrical Contacts: 2 + PE
- Lifetime: > 5000 mating cycles
- Flammability: UL 94 V-0
- Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
- Temperature Range: -22°F - 176°F (-30°C - 80°C)
