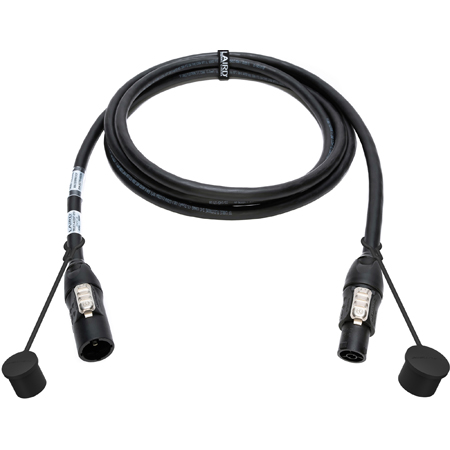

Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 3 Foot

Get larger image of Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 3 Foot


The Laird Locking Waterproof TRUE1-ACEXT Power Extension Cable assembly allows interconnection of electronic devices that utilize powerCON TRUE1 devices for live events, and motion picture and television production. The high quality UL recognized components ensure durability and long life. Waterproof for outdoor use.

Features:

  • Neutrik powerCON TRUE1 Locking Connectors
  • Lanyard Style Rubber Dust Caps
  • Flexibility in Low Temperatures
  • Dust and Water Resistant According to IP65 Rating
  • Water and Oil Resistant
  • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance

Specifications:

  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
  • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
  • TPrene Jacket - Black
  • 3 conductor Colors: Black, White and Green

    NAC3*X-W-TOP
  • Contact Resistance: = 2mΩ
  • Dielectric Strength: 4 kVdc/2.8 kVac
  • Insulation Resistance: > 0.1GΩ (after damp heat test IEC 68-2-30)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: > 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
  • Temperature Range: -22°F to 176°F
  • Rating Europe: EN 60320-1: 16 A 250 V AC
  • Rating USA: UL 498: 20 A 250 V AC

Warranty:

  • 1 Year

Download the TRUE1-ACEXT Series Datasheet


  TRUE1-ACEXT-003
Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 3 Foot
Weight: 0.7324 lbs.
Price:
$81.49
  TRUE1-ACEXT-006
Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 6 Foot
Weight: 1.1824 lbs.
Price:
$88.49
  TRUE1-ACEXT-010
Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 10 Foot
Weight: 1.7824 lbs.
Price:
$97.95
  TRUE1-ACEXT-025
Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 25 Foot
Weight: 4.0324 lbs.
Price:
$133.95
  TRUE1-ACEXT-050
Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 50 Foot
Weight: 7.7824 lbs.
Price:
$193.49
  TRUE1-ACEXT-075
Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 75 Foot
Weight: 11.5324 lbs.
Price:
$252.95
  TRUE1-ACEXT-100
Laird Neutrik TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable - 100 Foot
Weight: 15.2824 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$312.49
