Product Categories>Cables>Power & Extension Cables

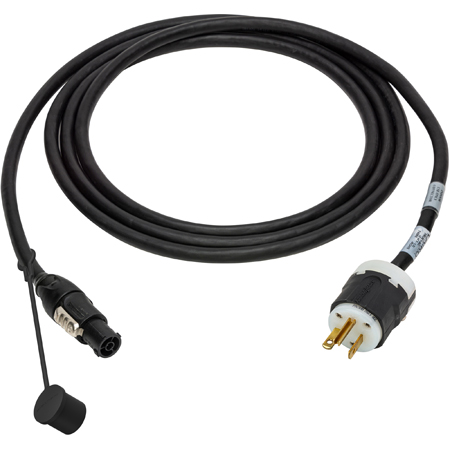

Laird TRUE1-AC20IN-003 Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 3 Foot

Get larger image of Laird TRUE1-AC20IN-003 Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 3 Foot


The Laird Locking TRUE1-AC20in Power In Cable assembly allows interconnection of electronic devices that utilize powerCON TRUE1 devices for live events, and motion picture and television production. The high quality UL recognized components ensure durability and long life. For indoor use only.

Features:

  • Neutrik powerCON TRUE1 Locking Connector
  • Lanyard Style Rubber Dust Caps
  • NEMA 5-20P AC Plug
  • Flexibility in Low Temperatures
  • Dust and Water Resistant According to IP65 Rating
  • Water and Oil Resistant
  • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance

Specifications:

  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
  • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
  • TPrene Jacket - Black
  • 3 conductor colors: Black, White and Green
    Leviton 5366-C AC Plug Cable End:
  • 20 Amp
  • 125V
  • NEMA 5-20P
    NAC3FX-W-TOP
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: 4 kVdc / 2.8 kVac
  • Insulation Resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: > 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
  • Temperature Range: -22 °F to 176 °F
  • Rating Europe: EN 60320-1: 16 A 250 V AC
  • Rating USA: UL 498: 20 A 250 V AC

Warranty:

  • 1 Year

Download the TRUE1-AC20IN Series Datasheet


  TRUE1-AC20IN-003
Laird TRUE1-AC20IN-003 Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 3 Foot
Weight: 0.7444 lbs.
Price:
$76.95
  TRUE1-AC20IN-010
Laird TRUE1-AC20IN-010 Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 10 Foot
Weight: 1.7944 lbs.
Price:
$93.49
  TRUE1-AC20IN-025
Laird TRUE1-AC20IN-025 Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 25 Foot
Weight: 4.0444 lbs.
Price:
$129.49
  TRUE1-AC20IN-050
Laird TRUE1-AC20IN-050 Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 50 Foot
Weight: 7.7944 lbs.
Price:
$188.95
  TRUE1-AC20IN-075
Laird TRUE1-AC20IN-075 Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 75 Foot
Weight: 11.5444 lbs.
Price:
$248.49
  TRUE1-AC20IN-100
Laird TRUE1-AC20IN-100 Neutrik TRUE1 powerCON Female to NEMA 5-20P 20-Amp 3-Prong Plug Power IN Cable - 100 Foot
Weight: 15.2944 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable.
Price:
$307.95
