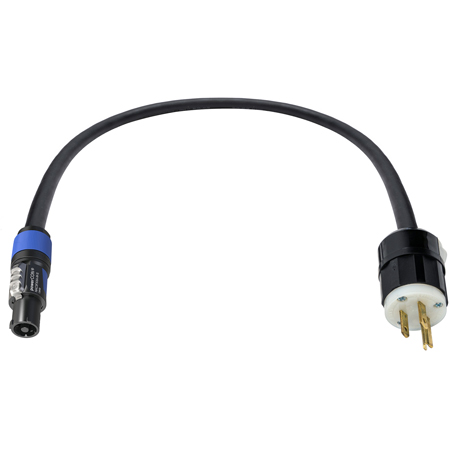

Laird Neutrik NAC3FCA powerCON to 3-Prong Male AC Input Power Cables

Get larger image of Laird Neutrik NAC3FCA powerCON to 3-Prong Male AC Input Power Cables


powerCON® is a lockable 3 pole equipment (AC) connector with contacts for line, neutral, and premating safety grounds. It is rated at 15A/250V ac. Color coded for easy identification, powerCONr offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating. The contacts are designed to prevent damage from arcing when disconnected while under load. The cable is a 300V 12 AWG UL Listed 3 Conductor TPrene Jacketed Heavy Duty Power Cord - Black. Professionally assembled in our in-house cable shop for powering various Mackie, Turbosound, JBL and other gear that utilize the Neutrik powerCON® connector.

Features:

  • Neutrik powerCON® XX Series
  • NEMA 5-15P AC Plug
  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
  • Flexibility in Low Temperatures
  • IP 20 Rated
  • Water and Oil Resistant
  • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance

Specifications:

  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
  • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
  • TPrene Jacket - Black
  • 3 conductor colors: Black, White and Green

    Leviton 5266-C AC Plug Cable End:
  • 15 Amp
  • 125V
  • NEMA 5-15P

    Neutrik NAC3FXXA-W-S powerCON® XX Series:
  • Contact Resistance: ≤2 mΩ
  • Dielectric Strength: > 3 kVac (after mating cycle)
  • Insulation Resistance: > 10 GΩ (initially)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: typically 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP20
  • Temperature Range: -33°F to 80°F
  • Rating Europe: EN 60320-1: 16A 250V AC, CBC
  • Rating USA/Canada: cUL 60320-1: 20 A 127 V AC, CBC

Warranty:

  • 1 Year

Download the PWRCN-ACIN Series Datasheet


  PWRCN-ACIN-3
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 3 Foot
Weight: 0.7524 lbs.
Price:
$36.95
  PWRCN-ACIN-5
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 5 Foot
Weight: 1.0524 lbs.
Price:
$41.49
  PWRCN-ACIN-2
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 2 Foot
Weight: 0.6024 lbs.
Price:
$34.95
  PWRCN-ACIN-6
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 6 Foot
Weight: 1.2024 lbs.
Price:
$43.49
  PWRCN-ACIN-10
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 10 Foot
Weight: 1.8024 lbs.
Price:
$51.49
  PWRCN-ACIN-30
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 30 Foot
Weight: 4.8024 lbs.
Price:
$92.95
  PWRCN-ACIN-15
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 15 Foot
Weight: 2.5524 lbs.
Price:
$61.95
  PWRCN-ACIN-25
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 25 Foot
Weight: 4.0524 lbs.
Price:
$82.95
  PWRCN-ACIN-35
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 35 Foot
Weight: 5.5524 lbs.
Price:
$103.49
  PWRCN-ACIN-50
Laird Neutrik powerCON Locking 3-Pole 15-Amp Type A to Edison AC Wall Plug Power Cable - 50 Foot
Weight: 7.8024 lbs.
Price:
$134.49
