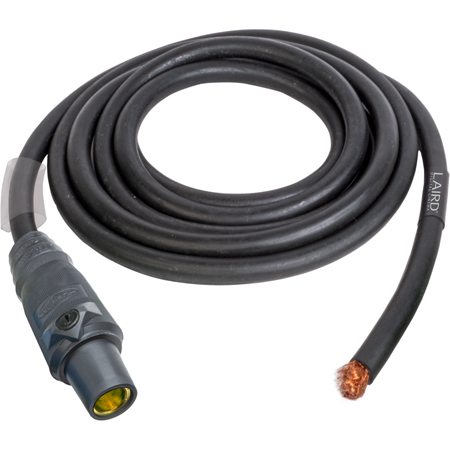

Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Female to Blunt - Black - 10 Foot

Get larger image of Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Female to Blunt -  Black - 10 Foot


Working at outside production venues, sound stages and theater events presents enough challenges - power reliability shouldn�t be one of them. That�s why Laird offers a comprehensive line of power feeder cables to give you peace of mind. Whether you're powering a dimmer rack, lighting control panel, stage equipment, or a generator, these cables are engineered to safely handle high currents, delivering power reliably where it�s needed most.

Designed for temporary electrical power distribution, Laird power feeder cables are the perfect solution for a wide range of applications, including entertainment productions, theme parks, carnivals, concerts, film sets, and more.

Each cable is equipped with Hubbell Cam-Lok connectors, ensuring a secure and trusted connection while remaining easy to patch or disconnect. For added convenience, the Cam-Loks are color-coded for quick phase identification. These 2/0 cables can handle up to 300 amps of power.

All told, these rugged Laird power feeder cables are designed for the most demanding applications in the toughest environments.

Features:

  • Excellent Flexibility
  • UL Listed
  • Series 16 Single Pole Connectors
  • Passes UL VW-1 Flame Test
  • TPE connectors resist cracking in cold, hot, or oily conditions.
  • Assembly is UV, Sunlight, ozone, oil resistant
  • Fully Compatible with industry-standard cam-type connectors
  • Non-Metallic safety retaining screw

Specifications:

  • Conductors: 30 AWG Annealed Bare Copper
  • Stranding: 1289/30
  • Conductor AWG: 2/0
  • Separator: Paper Tape
  • Outer Jacket: Heavy Duty CPE Thermosetting
  • Jacket Thickness: 0.08in
  • Cable O.D: 0.697in
  • Ampacity: 300A
  • Voltage: 600V
  • Temperature Range: - 31°F to 221°F (-35°C to 105°C)
    Weight: 6.88lbs

Warranty:

  • 1 Year

Download the Datasheet


  PWR300A-BE-F010
Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Female to Blunt - Blue - 10 Foot
Select Connectors:
Price:
$199.49
  PWR300A-BK-F010
Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Female to Blunt - Black - 10 Foot
Select Connectors:
Price:
$199.49
  PWR300A-GN-F010
Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Female to Blunt - Green - 10 Foot
Select Connectors:
Price:
$199.49
  PWR300A-GN-M010
Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Male to Blunt - Green - 10 Foot Price:
$199.49
  PWR300A-RD-F010
Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Female to Blunt - Red - 10 Foot
Select Connectors:
Price:
$199.49
  PWR300A-WE-F010
Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Female to Blunt - White - 10 Foot
Select Connectors:
Price:
$199.49
  PWR300A-WE-M010
Laird 2/0 AWG 300 Amp 16 Series Cam-Lok Flexible Feeder Cable Male to Blunt - White - 10 Foot Price:
$199.49
