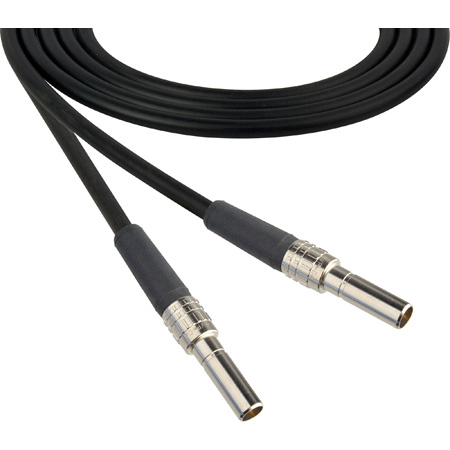

Laird Mid-Size Male to Male Video Patch Plug Cables

Get larger image of Laird Mid-Size Male to Male Video Patch Plug Cables


High performance Laird video patch cords featuring Canare L-4CFB cable and MVP-C4 Mid-Size Patch Plugs for Mid-Size HDTV bays. Super flexible and available in Black, Blue, Green and Red. Sharply dressed with a rubber boot to ensure additional strain relief and extra long life reliability. Patch cords are supplied in Black. Custom Lengths and configurations are our specialty!

Features:

  • High-quality Mid-Size Canare MVP-C4 connector
  • Super flexible, low-loss Canare L-4CFB cable for superior signal quality
  • 75 Ohm rating ensures optimal performance
  • Equipped with rubber boots for enhanced strain relief and extended lifespan

Specifications:

  • Canare L-4CFB:
  • Inner Conductor AWG: 20
  • Inner Conductor Material: Annealed Copper
  • Inner Conductor Outer Diameter: 0.80mm
  • Insulation Material: Foamed Polyethylene
  • Insulation Thickness: 1.45mm
  • Insulation Outer Diameter: 3.70mm
  • Outer Conductor 1 Material: Aluminum Laminated Tape
  • Outer Conductor 1 Thickness: 0.05mm
  • Outer Conductor 1 Outer Diameter: 3.8mm
  • Outer Conductor 2 Material/Coverage: Tinned Annealed Copper/≥93%
  • Outer Conductor pitch: ≤36mm
  • Outer Conductor 2 Outer Diameter: 4.4mm
  • Sheath Material: PVC
  • Sheath Thickness: 0.9mm
  • Outer Diameter: 6.1mm
  • Rated Voltage: AC 60Vrms
  • Inner Conductor D.C Resistance: ≤ 35.7Ω/km
  • Outer Conductor D.C Resistance: ≤ 10.7Ω/km
  • Insulation Resistance: ≥ 1000MΩ · km
  • Characteristic Impedance: 75±3Ω (10MHz)
  • Tensile Strength: ≥ 10.0 Mpa
  • Elongation: ≥ 200 %
  • Min Bend Radius:
    Static: 36.6mm (1.44in)
    Flexing: 91.5mm (3.60in)

    Canare MVP-C4:
  • Nom Impedance: 75 Ω unbalanced
  • Insulation Resistance: 2000MΩ or more
  • Contact resistance between external contacts: 10mΩ or less
  • Contact resistance between center contacts: 10mΩ or less
  • Return Loss:
    -26dB or more (0 ~1.5GHz)
    -20dB or more (0 ~2.4GHz)

Warranty:

  • Limited Lifetime
Download the Datasheet


  MVP-MVP-BE12
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 1 Ft Blue
Weight: 0.1361 lbs. 		Price:
$32.49
  MVP-MVP-BE24
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 2 Ft Blue
Weight: 0.1798 lbs. 		Price:
$32.95
  MVP-MVP-BE36
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - Blue - 3 Ft
Weight: 0.2235 lbs. 		Price:
$33.49
  MVP-MVP-BE60
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 5 Ft Blue
Weight: 0.3109 lbs. 		Price:
$34.95
  MVP-MVP-BE72
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 6 Ft Blue
Weight: 0.3546 lbs. 		Price:
$35.49
  MVP-MVP-BK24
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 2 Ft Black
Select Colors:
Weight: 0.1798 lbs. 		Price:
$32.95
  MVP-MVP-BK36
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 3 Ft Black
Select Colors:
Weight: 0.2235 lbs. 		Price:
$33.49
  MVP-MVP-BK60
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 5 Ft Black
Select Colors:
Weight: 0.3109 lbs. 		Price:
$34.95
  MVP-MVP-BK72
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 6 Ft Black
Select Colors:
Weight: 0.3546 lbs. 		Price:
$73.95
  MVP-MVP-GN12
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 1 Ft Green
Weight: 0.1361 lbs. 		Price:
$32.49
  MVP-MVP-GN24
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 2 Ft Green
Weight: 0.1798 lbs. 		Price:
$32.95
  MVP-MVP-GN36
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable Green - 3 Ft
Weight: 0.2235 lbs. 		Price:
$33.49
  MVP-MVP-GN60
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 5 Ft Green
Weight: 0.3109 lbs. 		Price:
$34.95
  MVP-MVP-GN72
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 6 Ft Green
Weight: 0.3546 lbs. 		Price:
$35.49
  MVP-MVP-RD12
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 1 Ft Red
Weight: 0.1361 lbs. 		Price:
$32.49
  MVP-MVP-RD24
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 2 Ft Red
Weight: 0.1798 lbs. 		Price:
$32.95
  MVP-MVP-RD36
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - Red - 3 Ft
Weight: 0.2235 lbs. 		Price:
$33.49
  MVP-MVP-RD60
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 5 Ft Red
Weight: 0.3109 lbs. 		Price:
$34.95
  MVP-MVP-RD72
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 6 Ft Red
Weight: 0.3546 lbs. 		Price:
$35.49
  MVP-MVP-BK12
Laird MVP-MVP Canare L-4CFB Mid-Size Mini-WECO Equivalent Video Patch Plug Male to Male Patch Cable - 1 Ft Black
Select Colors:
Weight: 0.1361 lbs. 		Price:
$32.49
