Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 1 Foot

Get larger image of Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 1 Foot

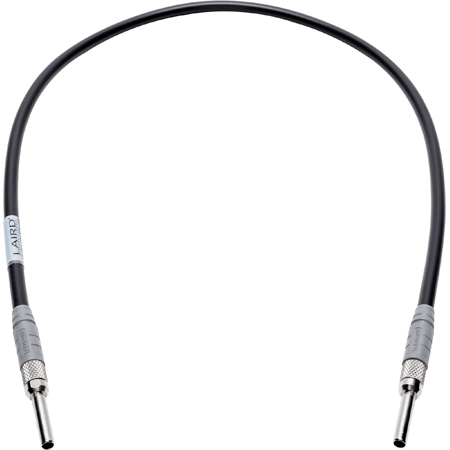

Coming from the broadcast video industry�s most trusted source in video cables, the Laird MICRO-VPATCH Series are the first choice in Micro Video Patch cords for 12Ghz panels. These patch cables are fully compatible with AVP, Bittree and Switchcraft brand video patchbays and ready to handle your critical video signals in 12G-SDI applications. Cables are a precision hand crafted work of art utilizing Belden 4505R coax and Switchcraft 2P7032 micro video patch plugs. Laird MICRO-VPATCH are lightweight and perfect in both studio and OB truck use.

Please Note: Not compatible with Canare patchbays

Features:

  • Designed for UHD and 4K Video Transport
  • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • Single Link Micro Video Patch Plug Simplifies Installations
  • Optimized Transmission Distance for UHDTV
  • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
  • Meets SMPTE 424M, ST2081-1 and ST2082-1 Standards
  • Sweep tested 5 MHz to 12 GHz

Specifications:

  • Belden 4505R 20 AWG 12G SDI Coax Cable with PVC Jacket:
  • Mechanical Characteristics:
  • Operating Temperature Range: -30°C To +75°C
  • Max. Recommended Pulling Tension: 52 lbs.
  • Min. Bend Radius/Minor Axis: 2.500 in.

    Electrical Characteristics:
  • Impedance (Ohm): 75
  • Inductance (µH/ft): 0.107
  • Capacitance (pF/ft): 16.100
  • Nominal Velocity of Propagation (%): 83.000
  • Nominal Delay (ns/ft): 1.220
  • Nom. Conductor DCR @ 20°C (Ohm/1000 ft): 10.200
  • Nominal Outer Shield DCR @ 20°C (Ohm/1000 ft): 3.400
  • Max. Operating Voltage - UL: 300 V RMS

    Physical Characteristics:
  • # Coax: 1
  • AWG: 20
  • Stranding: Solid
  • Conductor Material: Silver Plated Copper
  • Dia. (in.): 0.032
  • Insulation Material/ Diameter (in.): Gas-injected FHDPE - Foam High Density Polyethylene / .145"
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Overall Nominal Diameter: 0.233 in.

    Switchcraft 2P7032 Single UHD 75 Ohm Micro Video Patch Plug:
  • Meets SMPTE 2082-1
  • Impedance (Ohm): 75
  • Contact Resistance: Less than 50 Milliohms
  • Life Cycle: 5,000 min
  • Plug Barrel: Copper Alloy/Nickel Plated
  • Sleeve and Ferrule: Copper Alloy/Nickel Plated
  • Contact Pin: Copper Alloy/Gold Plated
  • Insulators: Teflon
  • Boot: Thermoplastic Elastomer, UL94-VO, Gray

Warranty:

  • 1 Year
Download the MICRO-VPATCH Series Datasheet


  MICRO-VPATCH-001
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 1 Foot
Select Colors:
Weight: 0.4854 lbs. 		Price:
$57.95
  MICRO-VPATCH-002
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 2 Foot
Select Colors:
Weight: 0.4854 lbs. 		Price:
$57.95
  MICRO-VPATCH-003
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 3 Foot
Select Colors:
Weight: 0.5174 lbs. 		Price:
$59.95
  MICRO-VPATCH-006
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 6 Foot
Select Colors:
Weight: 0.6134 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$64.95
  MICRO-VPATCH-010
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 10 Foot
Select Colors:
Weight: 0.7414 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$71.49
  MICRO-VPATCH18IN
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Black - 18 Inch
Select Colors:
Weight: 0.4854 lbs.
 Special Order Item: non-cancelable, non-returnable, non-refundable. 		Price:
$57.95
  MICROVPATCH001BE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Light Blue - 1 Foot
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH001GN
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Military Green - 1 Foot
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH001OE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Orange - 1 Foot
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH001RD
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Red - 1 Foot
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH002BE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Light Blue - 2 Foot
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH002GN
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Military Green - 2 Foot
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH002OE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Orange - 2 Foot
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH002RD
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Red - 2 Foot
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH003BE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Light Blue - 3 Foot
Weight: 0.5174 lbs. 		Price:
$59.95
  MICROVPATCH003GN
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Military Green - 3 Foot
Weight: 0.5174 lbs. 		Price:
$59.95
  MICROVPATCH003OE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Orange - 3 Foot
Weight: 0.5174 lbs. 		Price:
$59.95
  MICROVPATCH003RD
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Red - 3 Foot
Weight: 0.5174 lbs. 		Price:
$59.95
  MICROVPATCH006BE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Light Blue - 6 Foot
Weight: 0.6134 lbs. 		Price:
$64.95
  MICROVPATCH006GN
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Military Green - 6 Foot
Weight: 0.6134 lbs. 		Price:
$64.95
  MICROVPATCH006OE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Orange - 6 Foot
Weight: 0.6134 lbs. 		Price:
$64.95
  MICROVPATCH006RD
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Red - 6 Foot
Weight: 0.6134 lbs. 		Price:
$64.95
  MICROVPATCH010BE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Light Blue - 10 Foot
Weight: 0.7414 lbs. 		Price:
$71.49
  MICROVPATCH010GN
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Military Green - 10 Foot
Weight: 0.7414 lbs. 		Price:
$71.49
  MICROVPATCH010OE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Orange - 10 Foot
Weight: 0.7414 lbs. 		Price:
$71.49
  MICROVPATCH010RD
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Red - 10 Foot
Weight: 0.7414 lbs. 		Price:
$71.49
  MICROVPATCH18IBE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Light Blue - 18 Inch
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH18IGN
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Military Green - 18 Inch
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH18IOE
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Orange - 18 Inch
Weight: 0.4854 lbs. 		Price:
$57.95
  MICROVPATCH18IRD
Laird Micro Video Patch Cable 12G-SDI AVP/Bitree/Switchcraft Compatible - Red - 18 Inch
Weight: 0.4854 lbs. 		Price:
$57.95
