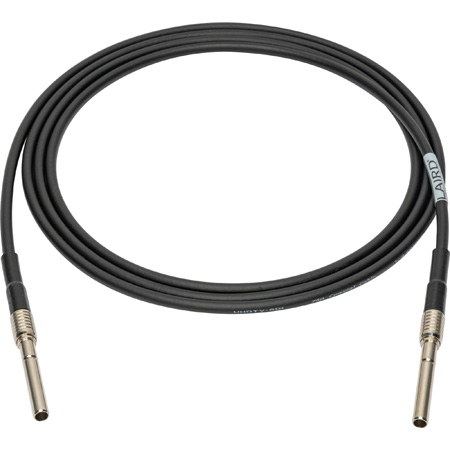

Laird MCVP-MCVP-001 Canare Micro Video Patch Cable - 1 Foot

Get larger image of Laird MCVP-MCVP-001 Canare Micro Video Patch Cable - 1 Foot


The Laird MCVP-MCVP patch cable is one of our thinnest and lightest 12G-SDI cables with an ultra-slim nominal O.D. of 0.165".
This cable is perfect for video patch bays because the coaxial features a stranded center conductor designed to hold-up in repeated bending applications. Its high-density double braided shield and 75 Ohm Coaxial construction deliver low loss performance for the most demanding broadcast applications.

Features:

  • Specifically Designed for Canare 12G-SDI 75Ohm Video Patch Board
  • Durable and Highly Flexible Canare Cable
  • Corrosion Resistant Canare Video Patch Plug

Specifications:

  • Canare L-2.5CHWS Coax Cable
  • Stranded Center Conductor
  • High-Density Double Braided Shield
  • Highly Foamed Insulation
  • Characteristic Impedance: 75 Ohm
  • Attenuation: 37.4 dB/100m (328ft 750MHz)
  • Jacket: PVC Dielectric Strength: 1000V AC/min
  • Canare MCVP-C25HW 75Ohm Video Patch Plug
  • Return Loss: 20dB 0-3GHZ, 13dB 0-6GHz, 7dB 0-12GHz
  • Inner conductor comp (AWG): 24
  • Inner conductor O.D.: 0.02 inch
  • Insulation O.D.: 0.102 inch
  • Nominal O.D. 0.165 inch


  MCVP-MCVP-001
Laird MCVP-MCVP-001 Canare 12G-SDI Micro Video Patch Cable - 1 Foot
Weight: 0.18 lbs. 		Price:
$27.95
  MCVP-MCVP-003
Laird MCVP-MCVP-003 Canare 12G-SDI Micro Video Patch Cable - 3 Foot
Weight: 0.2 lbs. 		Price:
$28.49
  MCVP-MCVP-006
Laird MCVP-MCVP-006 Canare 12G-SDI Micro Video Patch Cable - 6 Foot
Weight: 0.26 lbs. 		Price:
$30.49
  MCVP-MCVP-010
Laird MCVP-MCVP-010 Canare 12G-SDI Micro Video Patch Cable - 10 Foot
Weight: 0.34 lbs. 		Price:
$32.95
  MCVP-MCVP-015
Laird MCVP-MCVP-015 Canare 12G-SDI Micro Video Patch Cable - 15 Foot
Weight: 0.44 lbs. 		Price:
$35.95
  MCVP-MCVP-025
Laird MCVP-MCVP-025 Canare 12G-SDI Micro Video Patch Cable - 25 Foot
Weight: 0.64 lbs. 		Price:
$42.49
  MCVP-MCVP-050
Laird MCVP-MCVP-050 Canare 12G-SDI Micro Video Patch Cable - 50 Foot
Weight: 1.14 lbs. 		Price:
$57.95
  MCVP-MCVP-075
Laird MCVP-MCVP-075 Canare 12G-SDI Micro Video Patch Cable - 75 Foot
Weight: 1.64 lbs. 		Price:
$73.49
  MCVP-MCVP-100
Laird MCVP-MCVP-100 Canare 12G-SDI Micro Video Patch Cable - 100 Foot
Weight: 2.14 lbs. 		Price:
$88.95
  MCVP-MCVP-18IN
Laird MCVP-MCVP-18IN Canare 12G-SDI Micro Video Patch Cable - 18 Inch
Weight: 0.18 lbs. 		Price:
$28.49
