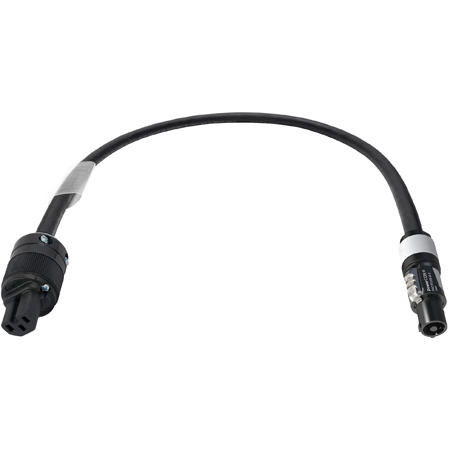

Quickly and easily adapt your powerCON cables to feed the IEC power port on your video wall displays, mixers, amps, lights and more. These handy 2 foot whips feature a powerCON TRUE1 TOP locking true mains connector for a rugged, locking solution to ensure a safe power connection. The powerCON TRUE1 TOP is a single-phase connector with breaking capacity (CBC). Fully assembled in the USA.
Features:
- Neutrik powerCON XX Series Connector
- 15A 120V IEC 320 Specification Grade Connector
- PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
- Flexibility in Low Temperatures
- IP20 Rated
- Water and Oil Resistant
- Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance
Specifications:
- PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
- UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
- TPrene Jacket - Black
- 3 conductor colors: Black, White and Green
Neutrik powerCON XX Series: - Contact Resistance: ≤ 2 mΩ
- Dielectric Strength: > 3 kVac (after mating cycle)
- Insulation Resistance: > 10 GΩ (initially)
- Number of Electrical Contacts: 2 + PE
- Lifetime: typically 5000 mating cycles
- Flammability: UL 94 V-0
- Protection Class: IP20
- Temperature Range: -33°F to 80°F
- Rating Europe: EN 60320-1: 16A 250V AC, CBC
- Rating USA/Canada: cUL 60320-1: 20 A 127 V AC, CBC
Marinco 320IEC15 IEC Power Connector 15A 120V: - 15A 120V IEC 320 Specification Grade Connector
- Materials: Plastic parts are heat stabilized nylon with CTI greater than 400 volts
- Contacts: One piece solid brass, 0.32 in thickness, double wipe
- Maximum operating temperature of 120°C
- UL listed, CSA certified
- Weight: 1.6 oz
