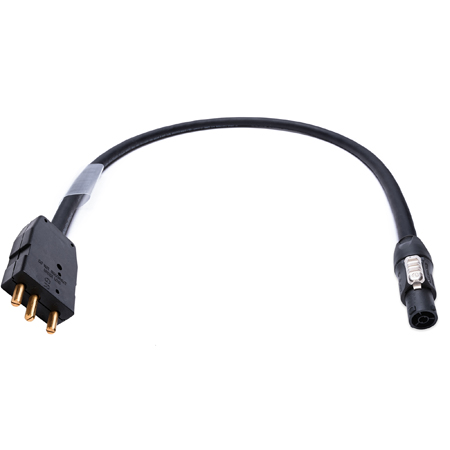

The LDC-BSPM-PCTF is a handy power cable by Laird for adapting a 20 Amp Stage Pin to a Neutrik TRUE1 TOP cable. These cables are built with SJOOW heavy duty 12/3 wire that�s perfect for location shoots, studio sets and theatrical stages to power lighting, audio and video gear. This power adapter cable has a male 20 Amp Stage Pin to a female Neutrik powerCON TRUE1 TOP. The Twistlock design provides a secure AC connection to ensure your gear is always up and running!
Features:
- Laird's heavy-duty flexible SJOOW PWR-12/3-TP power cable
- High-quality Neutrik powerCON connectors
- Rugged 20-amp connectors
- UL-recognized components
Specifications:
Laird PWR-12/3-TP Cable:- Cable Type: SJOOW
- Number of Conductors x AWG: 3x12
- Conductor Insulation: Rubber (EPR)
- Outer Jacket Material: Rubber (CPE)
- Current Carrying Capacity: 25 Amps
- Outer Diameter: 0.425in - 0.476in
- Nom. Voltage: AC U 300V
- Temperature:
• Flexing: -4°F to 194°F (-20°C to +90°C)
• Static: -40°F to 194°F (-40°C to +90°C) - Min Bend Radius:
• Flexing: 4.76in
• Static: 2.85in - Weight: 0.14lbs/ft
Neutrik powerCON Connector: - Contact Resistance: ≤ 2 mΩ
- Amperage: 20 Amps
- Voltage: 250 V AC
- Dielectric Strength: 4 kVdc / 2.8 kVac
- Insulation Resistance: > 0.1 GΩ (initially)
- Lifetime: 5'000 mating cycles
Bates Connector: - Max. Amperage: 20 Amps
- Max. Voltage: 250 Volts
- Housing Material: Thermoplastic
- Contact Material: Brass
Warranty:
