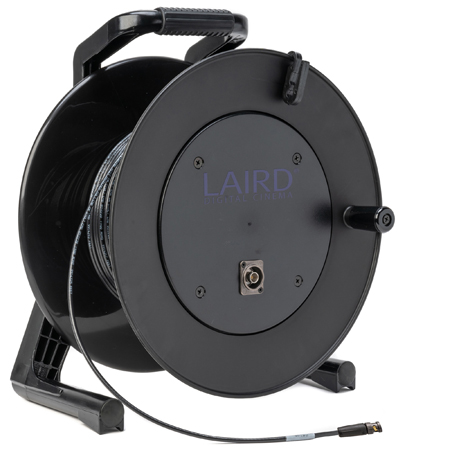

Laird BNC cable reels break the 12GHz 4K UHD coax barrier! These next-gen mini-RG59 BNC cable reels are designed to handle 12GHz 4K UHD signals up to 150 feet (3G-SDI up to 310 Feet) and provide the critical link between your switchers, cameras and other 4K video gear. Hand crafted 4855R 4K Ultra-High-Definition Mini-RG59 coaxial cable assemblies feature Neutrik RearTwist BNCs and are integrated with a high impact cable reel making it the first choice for field and live event deployment. Why run dual link and quad link cables when one will do the job! Laird's BNC cables are ready to meet today's high bandwidth 12G-SDI signal / data serial interface requirements. The 4855 Series is the 12G-SDI equivalent of Belden's famous 1855 cable. It features a silver plated copper center conductor and a low profile diameter of less than 1/8" making it the ideal choice for patch bays and OB trucks. Custom lengths are always available.
Features:
- Meets ST 2081-1 and ST2082-1 Standards Durable 18AWG, Precision Coax Cable Superior Pull Strength for Secure Connections Maximize Broadcast Signal Integrity Transmission Distance: up to 149 feet 12G Rugged and Lightweight Reel Features Spool Brake and Neutrik Grounded 4K/8K UHD D-Style Chassis Mount BNC Connector
Specifications:
- Belden 12G-SDI/4K UHD Single Channel BNC Cable Low-Loss Serial Digital 23AWG Cable with PVC Jacket Gas-injected Foamed HD Polyethylene Insulation Silver-plated Copper Conductor Tinned Copper Braid Shield Impedance: 75Ω Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet Neutrik rearTWIST UHD BNC Durability: 1000 Cycles VSWR: ≤1.06 / ≥30 dB up to 6 GHz / ≤1.13 / ≥24 dB up to 12 GHz /≤1.22 ≥20 dB up to 18 Ghz Insulation Resistance: >5GΩ
Warranty:
