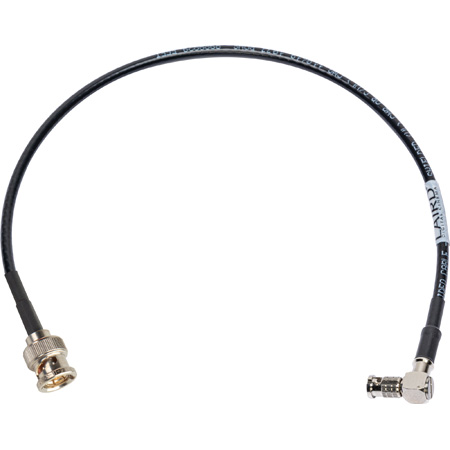

Laird, the worldwide leader in 12G-SDI cable infrastructure, introduces the industry's first 12G right angle HD-BNC cable series utilizing Belden's 4855R mini-RG59 cable. The HDBNC4855-RA HD-BNC cable provides the advantages of simplified cable routing via right angle connectors in high density routers and lower cable stress weight by way of 12G rated 4855R cable. This series features a right angle HD-BNC plug to full-size BNC plug configuration for easy adaption to standard BNC cabling. Laird has partnered with Amphenol to produce and HD-BNC cable optimized for 4K Ultra HD Broadcast signal transport delivering a crystal clear signal and true 75 Ohm performance. The bayonet mating of the HD-BNC connector ensures your cable is on there to stay. Using the best Belden 12G-SDI coax cable available, Laird UHD HD-BNC cables meet the requirements SDI SMPTE 2082-1 and 2081-1 requirements and are fully backwards compatible with 6G, 3G and standard SDI workflows.
Features:
- 4K UHD Precision 75-Ohm Video Cable
- 12G SDI Optimized Amphenol BNC Connectors
- Right Angle HD-BNC Connector Provides Strain Relief
- Compatible with 12G-SDI Single Link Format Devices
- Meets SMPTE 424M, 2081-1, 2082-1 Standards
Specifications:
- Belden 4855R, RG-59 Mini 23AWG Cable
- Transmits 12G Signals up to 149 Feet, 6G to 215 Feet, 3G up to 310 Feet
- Nominal Impedance: 75Ω
- Conductor: Silver Plated Copper
Warranty:
