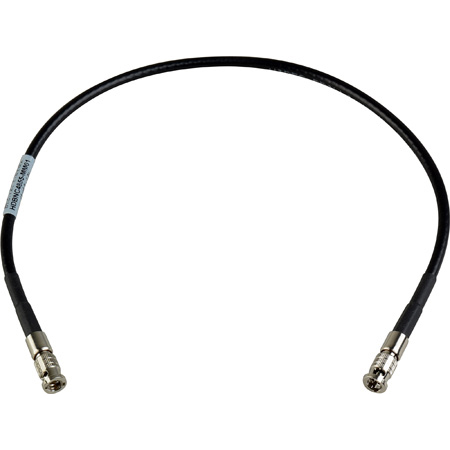

Laird HDBNC4855-MM01 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 1 Foot

Get larger image of Laird HDBNC4855-MM01 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 1 Foot


The Laird HDBNC4855 Series of low profile coax HDBNC to HDBNC male adapter cables are designed for transmitting high resolution uncompressed 12G-SDI / 4K UHD video signals. Ideal for high density jackfields, routers and signal distribution systems where RF performance is critical. The HDBNC utilizes a bayonet style mating analogous to traditional BNCs for a reliable coupling. These Laird cables are built with Belden low loss 4855R coax rated for 12G-SDI runs up to 150 feet. The cable's new braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.

Features:

  • Designed for UHD and 4K Video Transport
  • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • 12G SDI Optimized BNC Connectors
  • Optimized Transmission Distance for UHDTV
  • Transmits up to 149 ft/45m
  • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
  • Meets SMPTE ST-2082-1 and ST-2081-1 Standards

Specifications:

  • Belden 12G SDI Mini-RG59 Coax Cable with PVC Jacket
  • Compatible with 12GSDI single link format devices
  • Nominal Impedance: 75Ω
  • Conductor: Silver Plated Copper
  • Insulation: Gas Injected Foam HDPE
  • Outer Shield: Duofoil bonded to the Core + Tinned Copper Braid Shield
  • Conductor DC Resistance: 19.700 DCR@20°C(Ohm/1000ft)
  • Outer Shield Resistance: 3.900 DCR@20°C(Ohm/1000ft)
  • Nominal Inductance: .107 ΜH/ft
  • Nominal Capacitance Conductor to Shield: 16.3 pF/ft
  • Transmission Distance: 12G signals up to 149 feet, 6G up to 215 feet, and 3G up to 310 feet
  • Amphenol Connectors
  • Meet SMPTE Standards for 12G-SDI
  • Durability: 500 Cycles

Warranty:

  • 1 Year

Download the HDBNC4855-MM Series Datasheet


  HDBNC4855-MM01
Laird HDBNC4855-MM01 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 1 Foot
Weight: 0.0978 lbs.
Price:
$39.49
  HDBNC4855-MM03
Laird HDBNC4855-MM03 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 3 Foot
Weight: 0.1148 lbs.
Price:
$40.95
  HDBNC4855-MM06
Laird HDBNC4855-MM06 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 6 Foot
Weight: 0.1658 lbs.
Price:
$44.49
  HDBNC4855-MM10
Laird HDBNC4855-MM10 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 10 Foot
Weight: 0.2338 lbs.
Price:
$49.95
  HDBNC4855-MM15
Laird HDBNC4855-MM15 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 15 Foot
Weight: 0.3188 lbs.
Price:
$60.95
  HDBNC4855-MM18I
Laird HDBNC4855-MM18I Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 18 Inch
Weight: 0.0978 lbs.
Price:
$39.49
  HDBNC4855-MM25
Laird HDBNC4855-MM25 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 25 Foot
Weight: 0.4888 lbs.
Price:
$70.95
  HDBNC4855-MM50
Laird HDBNC4855-MM50 Belden 4855R HD-BNC Male to HD-BNC Male 12G-SDI Cable - 50 Foot
Weight: 0.9138 lbs.
Price:
$109.49
