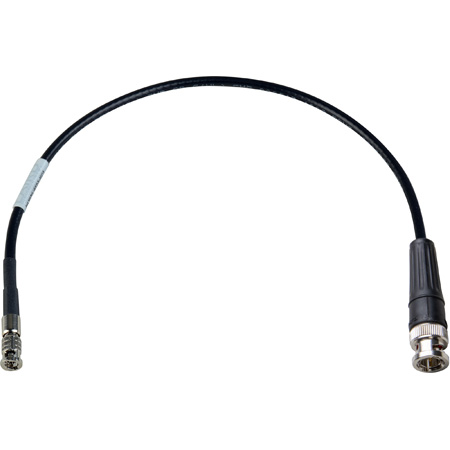

Laird HDBNC4855-B01 High Density HD-BNC Male to Standard BNC Male 12G HD-SDI Cable - 1 Foot

Get larger image of Laird HDBNC4855-B01 High Density HD-BNC Male to Standard BNC Male 12G HD-SDI Cable - 1 Foot


The Laird HDBNC4855 Series of low profile coax HD-BNC to BNC male adapter cables are designed for transmitting high resolution uncompressed 12G-SDI / 4K UHD video signals. Ideal for high density jackfields, routers and signal distribution systems where RF performance is critical. The HD-BNC utilizes a bayonet style mating analogous to traditional BNCs for a reliable coupling. These Laird cables are built with Belden low loss 4855R coax rated for 12G-SDI runs up to 150 feet. The cable's new braid design, silver-plated copper conductor, and a new polyethylene formula are all design features that contribute to significant RL improvement and an 8 dB improvement on cable attenuation compared to existing coaxes. Fully compatible with SMPTE ST-2082-1 and ST-2081-1 standards.

Features:

  • Designed for UHD and 4K Video Transport
  • 12 GHz, 4K UHD Precision 75-Ohm Video Cable
  • HD BNC Straight Crimp Connectors Simplify Installations
  • Optimized Transmission Distance for UHDTV
  • Transmits up to 149 ft/45m
  • Return Loss: Guarantees -15 dB RL from 4.5 to 12GHz
  • Meets SMPTE ST-2082-1 and ST-2081-1 Standards

Specifications:

  • Belden 12G SDI Mini-RG59 Coax Cable with PVC Jacket
  • Compatible with 12GSDI Single Link Format Devices
  • Nominal Impedance: 75Ω
  • Conductor: Silver Plated Copper
  • Insulation: Gas Injected Foam HDPE
  • Outer Shield: Duofoil Bonded to the Core + Tinned Copper Braid Shield Conductor DC Resistance: 19.700 [email protected]°C(Ohm/1000ft)
  • Outer Shield Resistance: 3.900 [email protected]°C(Ohm/1000ft)
  • Nominal Inductance: .107 ΜH/ft
  • Nominal Capacitance Conductor to Shield: 16.3 pF/ft
  • Transmission Distance: 12G Signals up to 149 feet, 6G up to 215 Feet, and 3G up to 310 Feet
  • Amphenol Connectors
  • Meet SMPTE Standards for 12G-SDI Durability: 500 Cycles

Warranty:

  • 1 Year



  HDBNC4855-B01
Laird HDBNC4855-B01 High Density HD-BNC Male to Standard BNC Male 12G HD-SDI Cable - 1 Foot
Weight: 0.0834 lbs.
Price:
$33.49
  HDBNC4855-B03
Laird HDBNC4855-B03 High Density HD-BNC Male to Standard BNC Male 12G HD-SDI Cable - 3 Foot
Weight: 0.1004 lbs.
Price:
$34.95
  HDBNC4855-B06
Laird HDBNC4855-B06 High Density HD-BNC Male to Standard BNC Male 12G HD-SDI Cable - 6 Foot
Weight: 0.1514 lbs.
Price:
$35.95
