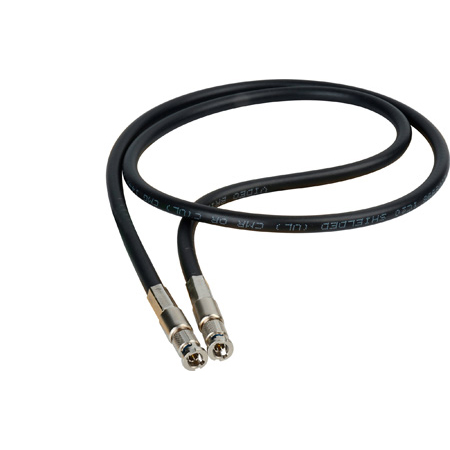

Connectronics High Density HD-BNC Male to HD-BNC Male HD-SDI Cable with Belden1855A Mini-RG59

Get larger image of Connectronics High Density HD-BNC Male to HD-BNC Male HD-SDI Cable with Belden1855A Mini-RG59


The HD-BNC (aka Micro-BNC) is fast becoming popular on broadcast routers like the Harris Selenio as well as devices like the Gennum GS3440 Equalizer and GX3290 Crosspoint. HD-BNC delivers true 75 ohm performance in a footprint 51% smaller than traditional BNC connectors, allowing four times the density. Engineered to enhance electrical and mechanical performance, the HD-BNC connector features the trusted, push and turn interface of a traditional BNC, providing tactile feedback and a positive lock for quick and guaranteed mating. Using the same cable prep and termination specifications of legacy broadcast connectors makes adopting HD-BNC seamless.

One of the distinct advantages of the HD-BNC is its lack of variable return loss and mechanical bonding commonly found with mini-BNC and DIN 1.0 / 2.3 connectors. The HD-BNC connector meet or exceeds SMPTE 292M and SMPTE 424M specifications for return loss. The dielectric had also been extended on the jack to improve the mechanical strength of the center contact without return loss performance degradation. Connectors provide a solid, anti-splay outside diameter to mitigate any "wiggle."

Features:

  • Belden 1855A RG59/23 SDI Coaxial Cable
  • Amphenol Connectors



  HDBNC1855-MM01
Laird HDBNC1855-MM01 High Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable - 1 Foot
Weight: 0.08 lbs.
Price:
$49.95
  HDBNC1855-MM03
Laird HDBNC1855-MM03 High Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable - 3 Foot
Weight: 0.1 lbs.
Price:
$50.95
  HDBNC1855-MM05
Laird HDBNC1855-MM05 High Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable- 5 Foot
Weight: 0.14 lbs.
Price:
$51.95
  HDBNC1855-MM07
Laird HDBNC1855-MM07 High Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable - 7 Foot
Weight: 0.18 lbs.
Price:
$53.95
  HDBNC1855-MM10
Laird HDBNC1855-MM10 High Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable- 10 Foot
Weight: 0.24 lbs.
Price:
$49.95
  HDBNC1855-MM15
Laird HDBNC1855-MM15 High Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable - 15 Foot
Weight: 0.34 lbs.
Price:
$60.95
  HDBNC1855-MM25
Laird HDBNC1855-MM25 High Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable - 25 Foot
Weight: 0.54 lbs.
Price:
$68.95
  HDBNC1855-MM50
Laird HDBNC1855-MM50 High Density HD-BNC Male to HD-BNC Male 6G HD-SDI Cable - 50 Foot
Weight: 1.04 lbs.
Price:
$88.95
